DF2328BVF25V The Renesas DF2328BVF25V is a 16-bit microcontroller with 256KB of FLASH program memory and 8K RAM. It operates at 25MHz and supports a voltage range of 2.7V to 3.6V.
Mfr Part #:

DF2328BVF25V

Available from 1 distributors
Mfr Name: Renesas
Renesas
The Renesas DF2328BVF25V is a 16-bit microcontroller with 256KB of FLASH program memory and 8K RAM. It operates at 25MHz and supports a voltage range of 2.7V to 3.6V.
✓ Total Stock: 8,745 pcs

DF2328BVF25V Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
8,745 pcs
On Request
8745 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DF2328BVF25V Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Data Converters
Lead Spacing
Mounting Type
Number of I
Operating Temperature
Oscillator Type
Peripherals
Program Memory Size
Program Memory Type
RAM Size
Speed
Storage Temperature
Supplier Device Package
Tape & Reel
Voltage
View Similar Products (0)

DF2328BVF25V Description

Short technical summary and product information.

This Renesas DF2328BVF25V is a 16-bit microcontroller from the HD64F2328 family. It features a 25MHz core speed and 256KB of FLASH program memory with 8K x 8 RAM.



The microcontroller operates within a voltage range of 2.7V to 3.6V and includes peripherals such as DMA, POR, PWM, and WDT. It also supports SCI and SmartCard connectivity. The device is equipped with an internal oscillator and data converters including A/D 8x10b and D/A 2x8b.

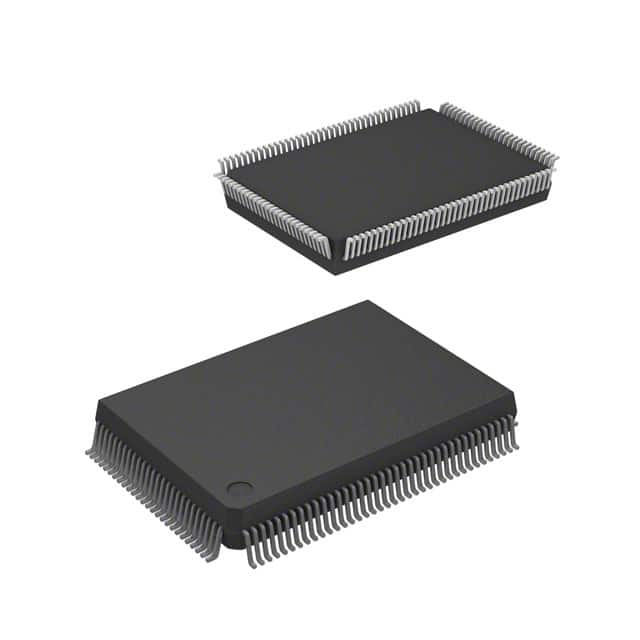

Packaged in a 128-BFQFP, this component is designed for surface mount applications. It operates within a temperature range of -20°C to 75°C (TA).

DF2328BVF25V Quick Information

Product Type: Microcontroller
Canonical Name: Renesas HD64F2328 Microcontroller
Subcategory: Embedded

DF2328BVF25V Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DF2328BVF25V Features

  • 16-bit H8S/2000 core processor.
  • 256KB FLASH program memory, 8K RAM.
  • Operates at 25MHz with internal oscillator.
  • Wide voltage range of 2.7V to 3.6V.
  • Surface mount 128-BFQFP package.

DF2328BVF25V Applications

  • Suitable for embedded control applications.
  • Features SCI and SmartCard interfaces.
  • Includes DMA, POR, PWM, and WDT peripherals.
  • Designed for -20°C to 75°C operation.

DF2328BVF25V FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the DF2328BVF25V?

The operating voltage is 2.7V to 3.6V.

What package type is the DF2328BVF25V microcontroller?

The DF2328BVF25V is available in a 128-BFQFP package.

What is the operating temperature range for this microcontroller?

The operating temperature range is -20°C to 75°C (TA).

What is the program memory size of the DF2328BVF25V?

The program memory size is 256KB (256K x 8).
