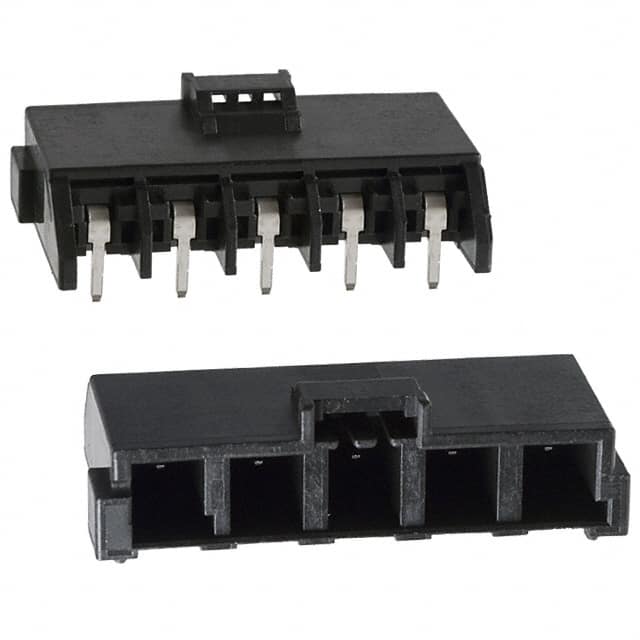

The DF22R-5P-7.92DS(05) from Hirose Electric is a 5-position, single-row, right-angle header designed for board-to-cable/wire applications. It features a 7.92mm pitch and a shrouded 4-wall housing with a latch holder for secure mating. The header uses square male pin contacts made of copper alloy with a tin-copper finish (39.4µin). The insulation material is black polyamide (PA) nylon with a UL94 V-0 flammability rating.
Electrical ratings include a current rating of 22A and a voltage rating of 1000V. The operating temperature range is -35°C to 85°C. The mounting type is through-hole, right-angle, with solder termination. The contact length is 9.00mm, and the insulation height is 12.20mm. A board guide feature aids in alignment during assembly.
This connector is suitable for power applications requiring a robust, high-current connection. The latch holder ensures reliable retention in vibration-prone environments. The shrouded design protects the contacts and provides polarization.
5 positions.
7.92mm (0.312 inches).
22 amps.
1000 volts.
Through-hole, right-angle.
-35°C to 85°C.
Tin-copper, 39.4µin thick.
