| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
46 pcs
|
46 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating | |
| Voltage Rating (Nominal @ TÜV) | |
| Voltage Rating (Nominal @ UL/C-UL) |

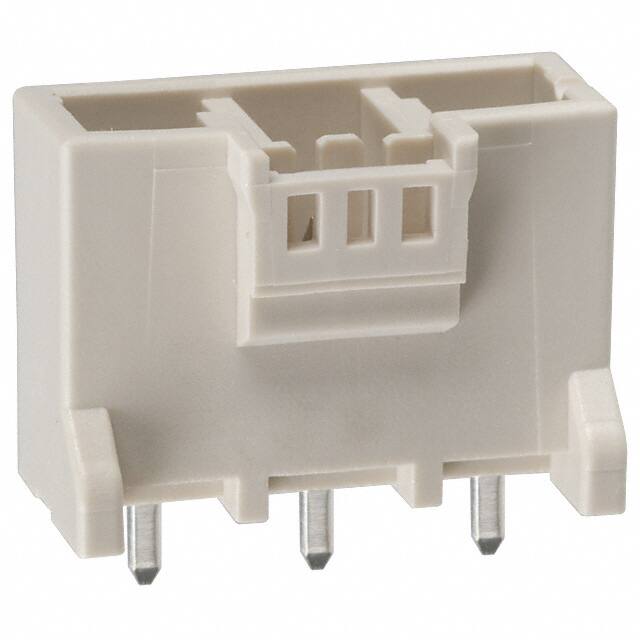

The Hirose Electric DF22-3P-7.92DSA is a 3-position header from the DF22 series, designed for high-current board-to-wire power connections. It features a 7.92mm pitch, through hole mounting, and solder termination for reliable PCB attachment.
The connector is rated for 25A continuous current (with 10 AWG wire, 3 positions) and 1000V AC/DC under UL/C-UL or 600V under TÜV standards. The contact material is copper alloy with tin finish, housed in a beige UL94 V-0 rated polyamide (nylon) insulator.
The shrouded 4-wall housing provides protection and alignment, while the latch holder ensures secure mating. A built-in board guide aids correct placement. Operating temperature range is -35°C to 85°C, suitable for internal power supply applications.
It is a 3-position header with all positions loaded.
The contact pitch is 7.92mm.
The current rating is 25A with 10 AWG wire across 3 positions.
It is rated for 1000V AC/DC under UL/C-UL and 600V AC/DC under TÜV standards.
It uses through hole mounting with solder termination.
Yes, it features a latch holder for secure mating.
