| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
190 pcs
|
190 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

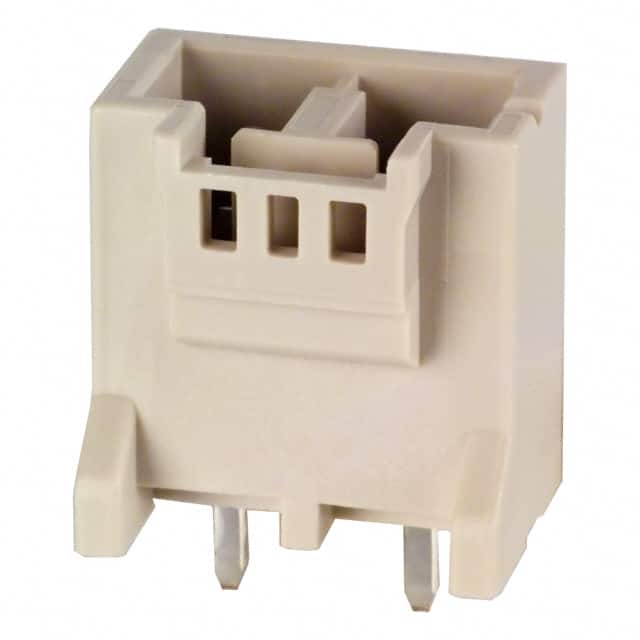

The Hirose DF22-2P-7.92DSA is a 2 position, single row, shrouded header from the DF22 series. It features a 7.92mm contact pitch and is designed for board-to-cable/wire applications. The header uses square male pins made of copper alloy with a tin contact finish. It is rated for 25A current (with 2 positions) and 1000V voltage. The insulation is beige polyamide (PA) nylon with a UL94 V-0 flammability rating. Mounting is through hole with solder termination. The connector includes a latch holder fastening type and a board guide feature. Operating temperature range is -35°C to 85°C.
The pitch is 7.92mm (0.312 inches).
It has 2 positions, all loaded, in a single row.
The current rating is 25A for 2 positions.
The voltage rating is 1000V.
Through hole with solder termination.
-35°C to 85°C.
Polyamide (PA) nylon with UL94 V-0 rating.
