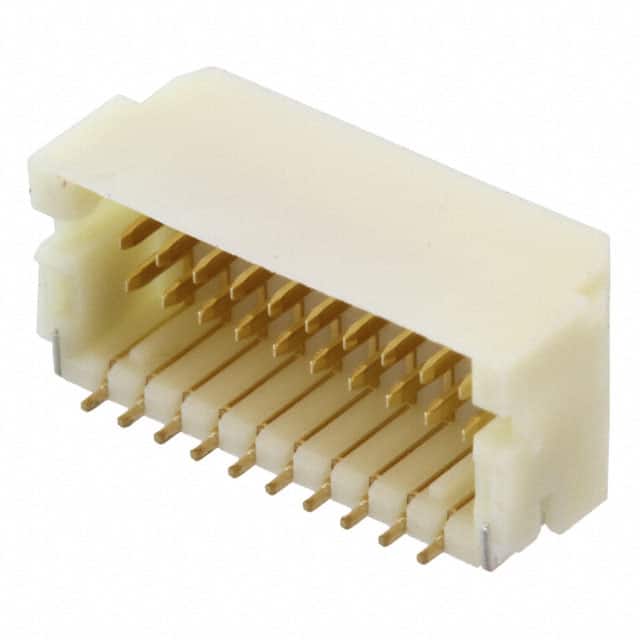

The DF20F-20DP-1H(50) is a 20-position, 2-row, 1mm pitch pin header from Hirose Electric's DF20 series. It features a surface mount, right angle termination with a shrouded 4-wall design. The connector is rated for 1A current (AWG#28) and 100V voltage, with an operating temperature range of -35°C to 85°C. Contact finish is gold with 8µin thickness, and insulation material is polyamide (PA) with UL94 V-0 flammability rating. Designed for board-to-cable/wire applications, the header includes solder retention features for reliable mounting. Applications include notebook PCs, small office automation equipment, and portable devices. The right-angle orientation allows for low-profile connections in space-constrained designs.
20 positions arranged in 2 rows.
1.00mm (0.039 inches).
1A for AWG#28, 0.9A for AWG#30, 0.7A for AWG#32.
100V AC.
Surface mount, right angle.
-35°C to 85°C.
UL94 V-0.
