| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
528 pcs
|
528 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

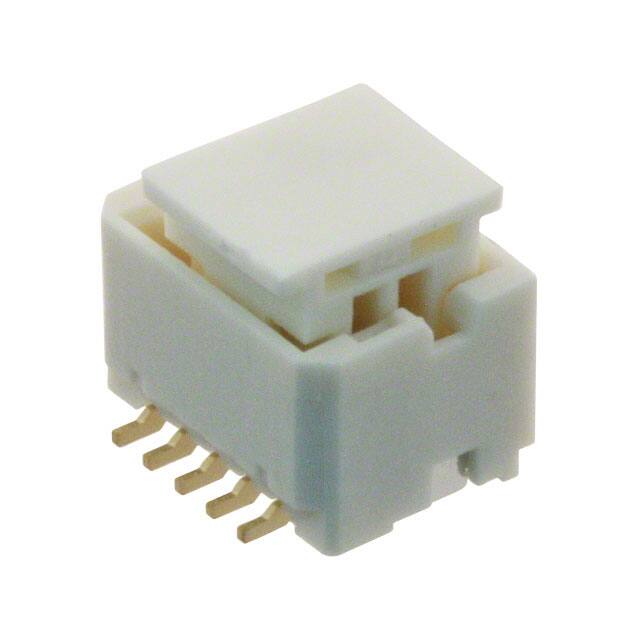

The DF20F-10DP-1V(55) is a 10-position, 2-row, surface mount header from Hirose Electric, designed for board-to-cable/wire applications. It features a shrouded 4-wall design for secure mating. The connector has a pitch of 1.00mm and row spacing of 1.00mm, with square male pins made of phosphor bronze with gold plating (8µin thickness). It is rated for 1A current and 100V voltage, with an operating temperature range of -35°C to 85°C. The insulation material is natural polyamide (PA) nylon with UL94 V-0 flammability rating. The connector includes solder retention feature for reliable surface mount soldering. It is suitable for compact electronic devices requiring a low-profile, high-density connector.
10 positions.
1.00mm.
1A.
100V.
Surface mount.
-35°C to 85°C.
Gold, 8µin thickness.
