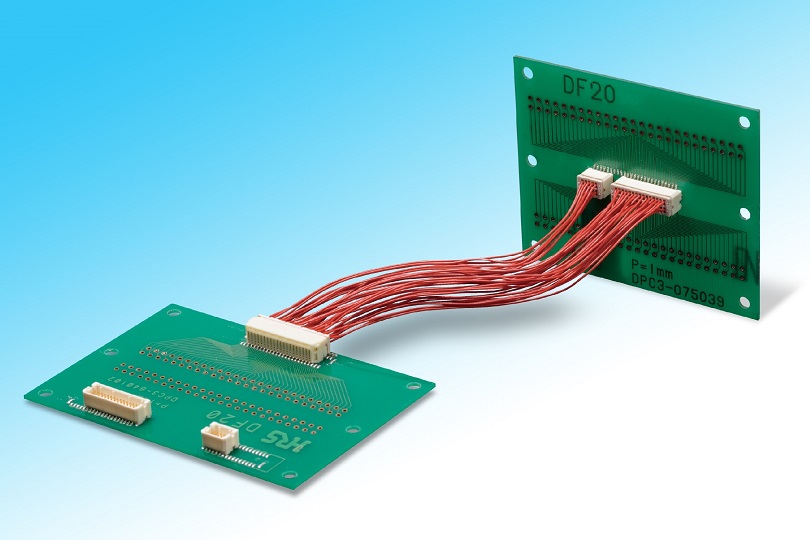

The Hirose DF20EF-20DP-1V(52) is a 20-position, 2-row rectangular header designed for board-to-cable/wire connections. It uses a 1.00mm pitch and features a 4-wall shrouded housing to protect the male pin contacts and ensure proper mating alignment. The header is surface mount (SMD) with solder termination, and includes pick and place and solder retention features for automated assembly.
The contacts are made of phosphor bronze with a gold finish (0.203µm thickness), providing reliable conductivity and corrosion resistance. The insulation is natural polyamide (nylon) with a UL94 V-0 flammability rating, ensuring safety in electronic assemblies. The header is rated for 100VAC/DC and operates over a temperature range of -35°C to 85°C.
This connector is suitable for compact designs requiring a high-density 1mm pitch interface. The push-pull fastening type allows simple mating and unmating. All 20 positions are loaded, and the header is designed for use with appropriate wire-to-board receptacle connectors.
It has 20 positions in a 2-row configuration.
The pitch is 1.00mm.
It is rated for 100VAC/DC.
It is surface mount (SMD) with solder termination.
The operating temperature range is -35°C to 85°C.
Yes, it is shrouded with a 4-wall design.
The contacts are gold-plated with a thickness of 8.00µin (0.203µm).
