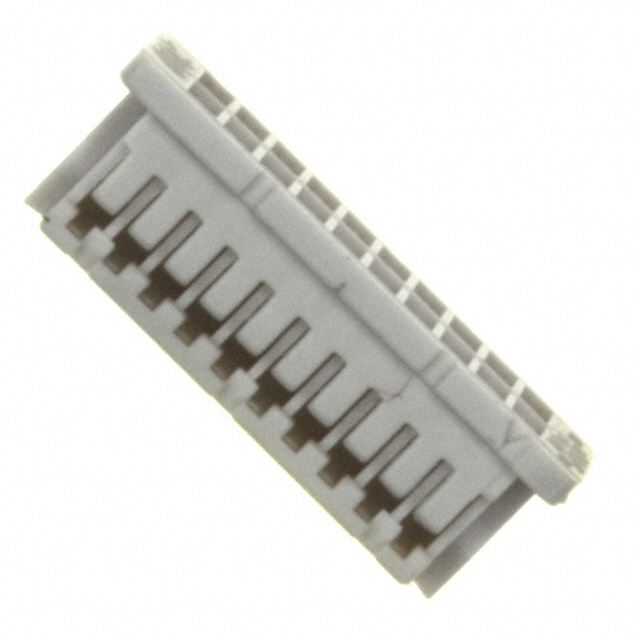

The Hirose Electric DF20A-20DS-1C is a 20 position, double row, 1.00mm pitch female socket receptacle housing from the DF20 series of low profile board-to-cable connectors. This housing accepts female socket contacts and is designed for free hanging (in-line) mounting with crimp termination.
Electrical ratings include a rated current of 1A for AWG#28 wire, 0.9A for AWG#30, and 0.7A for AWG#32, with a rated voltage of 100V AC. Contact resistance is 30mΩ maximum, insulation resistance is 500MΩ minimum, and the connector withstands 300V AC for 1 minute.
The housing operates over a temperature range of -35°C to 85°C and a humidity range of -20% to 80%. Mechanical characteristics include a maximum insertion force of 2N per contact and a minimum extraction force of 0.2N per contact. The connector is beige in color and is suitable for applications requiring reliable low profile connections.
