| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Length - Mating | |
| Contact Length - Post | |
| Contact Material | |
| Current Rating | |
| Fastening Type | |
| Insulation Height | |
| Insulation Material | |
| Mated Stacking Heights | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Pins | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Termination Style |

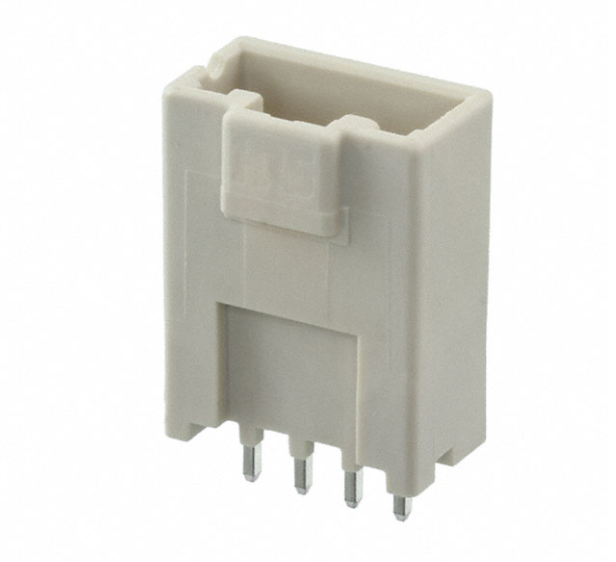

This Hirose Electric DF1EG-4P-25DSA35 is a connector header designed for board-to-cable and wire applications. It features 4 positions with a 2.50 mm pitch and a through-hole mounting type. The connector has a current rating of 3 Amp and an insulation height of 16.30 mm. The operating temperature range is -35 to 85 degrees Celsius.
The header is constructed with a brass contact material and tin plating on the posts. The insulation material is Polyamide (PA) or Nylon, with a flammability rating of UL94 V-0. It is a shrouded connector with 4 walls and a latch holder fastening type. The mated stacking heights range from 14.3 to 19.8 mm.
This component is suitable for various electronic applications requiring reliable connections. Its through-hole mounting ensures a secure connection to the PCB, while the latch holder provides additional mating security. The natural insulation color is standard for this series.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.77 | $0.77 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 4 positions in a single row.
The pitch is 2.5 mm.
It is rated for 3 A current.
It is a through-hole mount header.
The operating temperature range is -35 to 85 °C.
The insulator is polyamide (nylon) and the contacts are brass with a tin post finish.
