| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
48 pcs
|
48 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

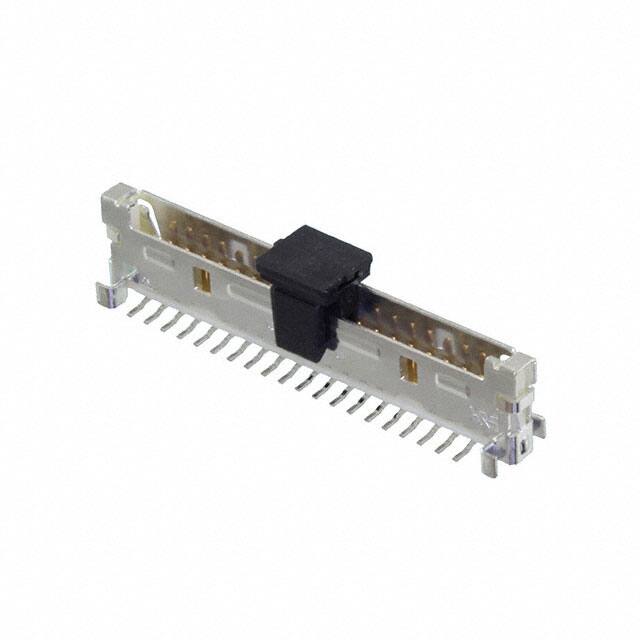

The DF19-20P-1V(56) is a 20-position, 1mm pitch surface mount header from Hirose Electric, designed for board-to-cable/wire connections. It features a shrouded 4-wall housing that provides mating alignment and protection, along with a friction lock for secure retention. The contacts are made of phosphor bronze with a tin-copper finish (3.90 µin thickness), ensuring reliable electrical performance. The insulation is beige polyamide (PA, Nylon) with a UL94 V-0 flammability rating, suitable for applications requiring flame resistance. The operating temperature range is -35°C to 85°C, and the voltage rating is 100V. This header includes pick-and-place and solder retention features, making it compatible with automated SMT assembly processes. The single-row, 20-position configuration with 1.00mm pitch is ideal for compact electronic devices where space is at a premium.
20 positions.
1.00mm.
100V.
Surface mount.
-35°C to 85°C.
Tin-Copper with 3.90 µin thickness.
Yes, shrouded - 4 wall.
