| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

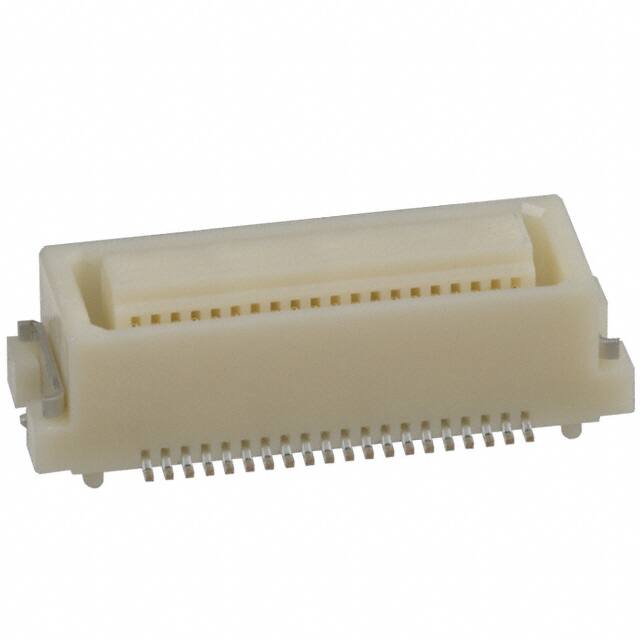

The Hirose DF17(4.0)-40DS-0.5V(57) is a 40-position mezzanine board-to-board connector featuring a receptacle with center strip contacts. It has a 0.50mm (0.020 inch) pitch and two rows of gold-plated contacts, designed for surface-mount soldering. The connector supports mated stacking heights of 6mm, 6.5mm, and 8mm.
This connector includes built-in board guide and solder retention features to aid in accurate placement and reliable attachment during assembly. The gold contact finish ensures reliable signal integrity in repeated mating cycles. The part is RoHS3 and REACH compliant, with an MSL rating of 1 (unlimited floor life).
The DF17(4.0)-40DS-0.5V(57) is typically supplied in tape and reel packaging with a standard package quantity of 500 pieces. It is suitable for use in a range of compact electronic devices where board-to-board spacing optimization is required.
It has 40 positions arranged in 2 rows.
The pitch is 0.50mm (0.020 inch).
It is surface mount (SMT).
It supports mated stacking heights of 6mm, 6.5mm, and 8mm.
The contact finish is gold.
Yes, it is RoHS3 compliant.
