| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

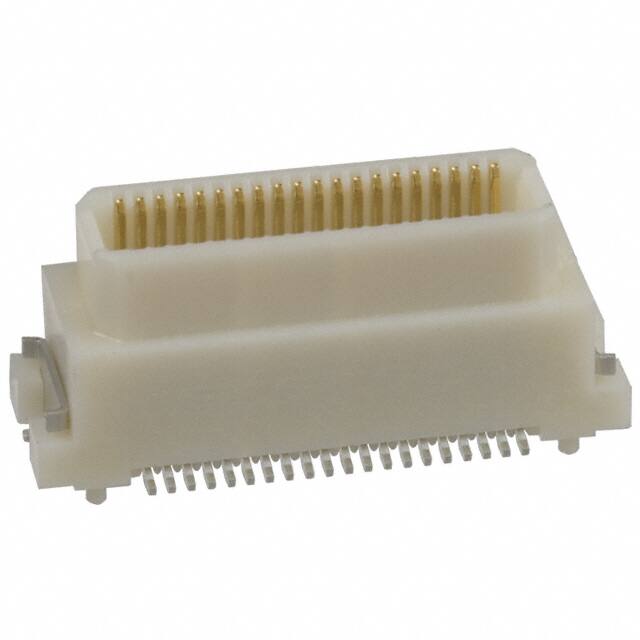

The Hirose DF17(4.0)-40DP-0.5V(57) is a 40-position, 2-row surface mount header with outer shroud contacts, designed for board-to-board mezzanine applications. It features a 0.50mm pitch and gold contact finish for reliable signal integrity.
This connector supports mated stacking heights of 7mm and 8mm, with a height above board of 0.248" (6.30mm). It includes board guide and solder retention features for secure placement during assembly.
The DF17 series is suitable for compact electronic devices requiring a low-profile, high-density interconnection solution. The surface mount design facilitates automated assembly processes.
The pitch is 0.50mm (0.020").
It has 40 positions arranged in 2 rows.
It is a surface mount connector.
The supported mated stacking heights are 7mm and 8mm.
The contact finish is gold.
Yes, it includes board guide and solder retention features.
