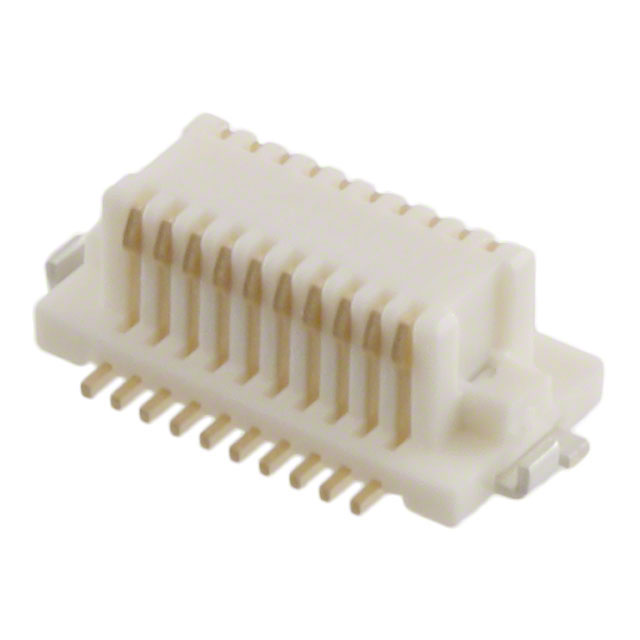

The DF16B-20DS-0.5V(86) is a 20-position, 0.5mm pitch surface mount receptacle from Hirose's DF16 series. It is designed for board-to-board connections with stacking heights of 2mm and 2.5mm. The connector features 2 rows of outer shroud contacts with gold finish and includes a solder retention feature for reliable mounting.
Electrically, the connector is rated for 0.3A total current and 50V AC. Contact resistance is 50 mΩ maximum, and insulation resistance is 500 MΩ minimum at 100V DC. It withstands 150V AC for 1 minute.
Operating temperature range is -35 to +85°C, with storage from -10 to +60°C. Operating humidity is 40 to 80%, and storage humidity is 40 to 70%. The connector is packaged in embossed tape and reel for automated assembly.
Applications include mobile phones, LCD displays, and other compact electronic devices requiring reliable board-to-board interconnects.
20 positions in 2 rows.
0.50mm (0.020").
0.3A total current per connector.
50V AC.
Surface mount (SMT).
2mm and 2.5mm.
-35 to +85°C.
