| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

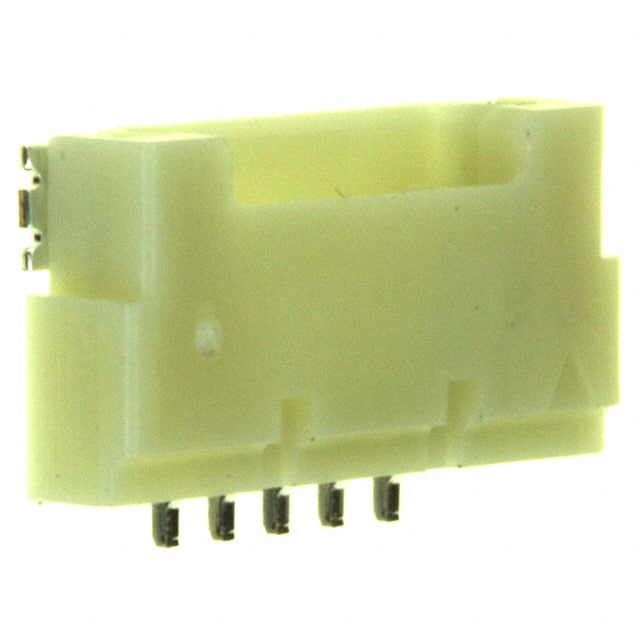

The DF14A-5P-1.25H(26) is a 5-position, single-row header from Hirose Electric's DF14A series. It features a 1.25mm pitch and is designed for board-to-cable/wire applications. The connector is surface mounted with a right-angle orientation, making it suitable for compact PCB layouts where space is constrained.
Key specifications include a current rating of 1A and a voltage rating of 150V. The operating temperature range is -35°C to 85°C, allowing use in a variety of environments. The contacts are made of brass with a tin-copper finish, and the insulator is beige polyamide (nylon) with a UL94 V-0 flammability rating.
The header is shrouded with a 4-wall design and features a push-pull fastening type with solder retention for secure mating. The contact length is 2.20mm and the insulation height is 2.50mm. This connector is RoHS3 and REACH unaffected compliant, with MSL 1 (unlimited) moisture sensitivity.
5 positions.
1.25mm.
1A.
150V.
Surface Mount, Right Angle.
-35°C to 85°C.
Solder.
