| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

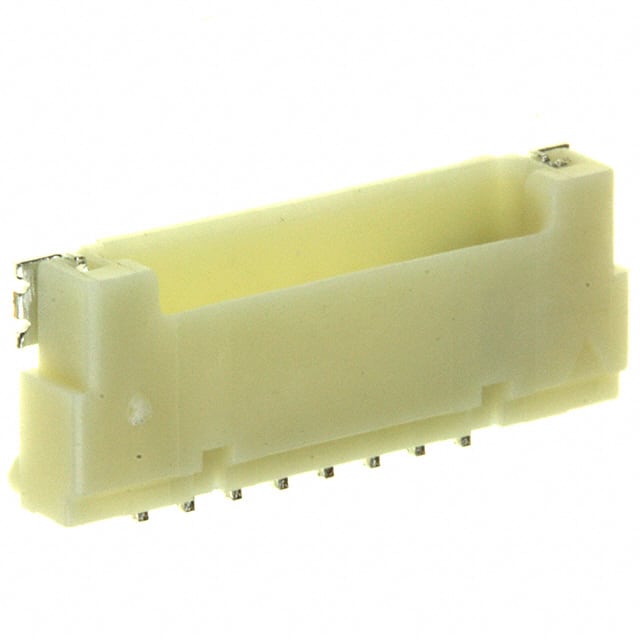

The Hirose Electric DF14-8P-1.25H(56) is a 8-position, single row header with a 1.25mm pitch, designed for surface mount right angle mounting. It features male square pins made of brass with a tin-copper finish, and a beige polyamide (nylon) insulator with UL94 V-0 flammability rating. The connector is shrouded with a 4-wall design and includes board guide and solder retention features for reliable assembly. Electrical ratings are 1A current and 150V voltage. Operating temperature range is -35°C to 85°C. The contact length is 2.20mm and insulation height is 2.50mm. This connector is RoHS3 and REACH compliant, with an MSL of 1 (unlimited). It is suitable for board-to-cable/wire applications in compact electronic devices.
It has 8 positions, all loaded.
The pitch is 1.25mm.
The current rating is 1A.
The voltage rating is 150V.
Surface mount, right angle.
-35°C to 85°C.
Yes, it is RoHS3 compliant and REACH unaffected.
