| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing (Pitch) | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

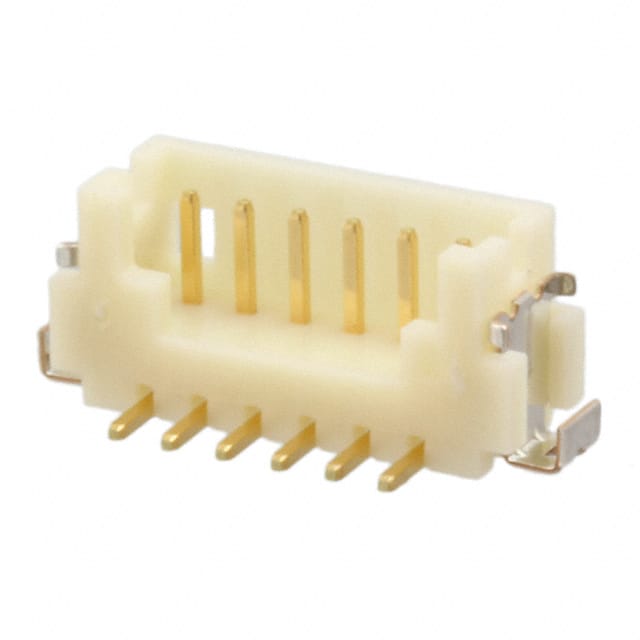

The Hirose DF13C-6P-1.25V(51) is a compact 6-position single-row header designed for board-to-cable/wire interconnections. It features a 1.25mm pitch with surface mount termination, making it suitable for high-density PCB designs. The shrouded housing with a 3-wall design and detent lock ensures secure mating and reliable connections in applications where vibration or accidental disconnection is a concern.
The connector is rated for 1A current and 150V voltage, with an operating temperature range of -35°C to 85°C. Contacts are made of brass with a gold finish of 8µin (0.203µm) to ensure low contact resistance and corrosion resistance. The insulation material is beige polyamide (nylon) with a UL94 V-0 flammability rating, meeting safety requirements.
Additional design features include solder retention for improved mechanical hold during reflow soldering. The connector supports surface mount assembly and is compatible with standard pick-and-place processes. All 6 positions are fully loaded.
The connector has 6 positions, all loaded, in a single row.
The pitch is 1.25mm.
The current rating is 1A per contact.
The voltage rating is 150V.
It is a surface mount (SMD) connector with solder termination.
The operating temperature range is -35°C to 85°C.
The contacts have a gold finish with a thickness of 8.00µin (0.203µm).
