| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
28 pcs
|
28 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

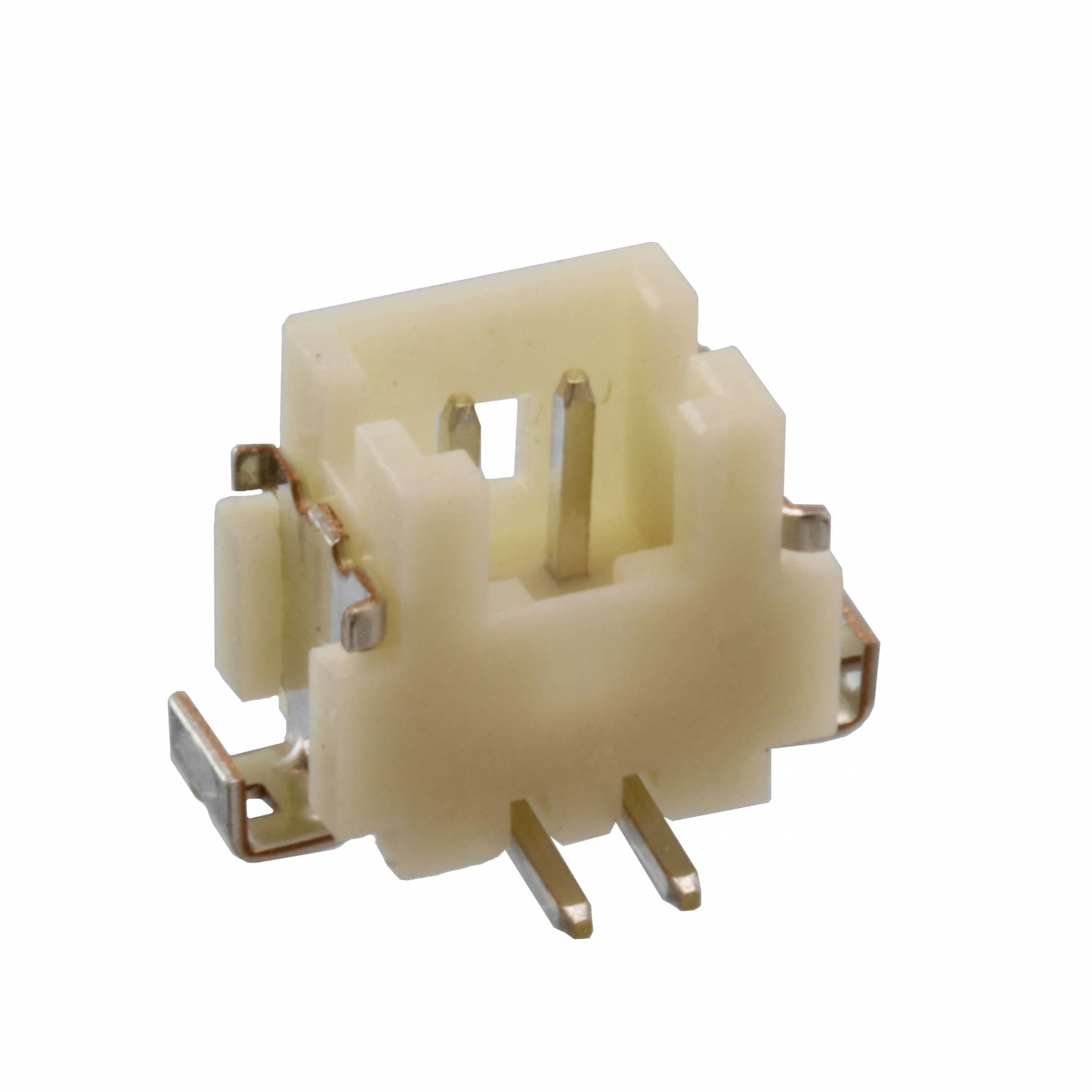

The Hirose Electric DF13C-2P-1.25V(75) is a 2-position, single-row, surface mount header connector designed for board-to-cable/wire applications. It features a 1.25mm pitch and male pin contacts made of brass with a tin finish. The connector is shrouded with a 3-wall design and includes a detent lock for secure mating.
The header is rated for 1A current and 150V voltage, with an operating temperature range of -35°C to 85°C. The insulation is made of polyamide (PA) nylon in beige color and has a UL94 V-0 flammability rating. The contact finish thickness is 1.00µm.
This component is surface mount with solder termination and includes a solder retention feature for reliable board attachment. All 2 positions are loaded. The part is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited).
It has 2 positions in a single row.
The pitch is 1.25mm.
The current rating is 1A.
The voltage rating is 150V.
It uses surface mount (SMD) with solder termination.
