| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

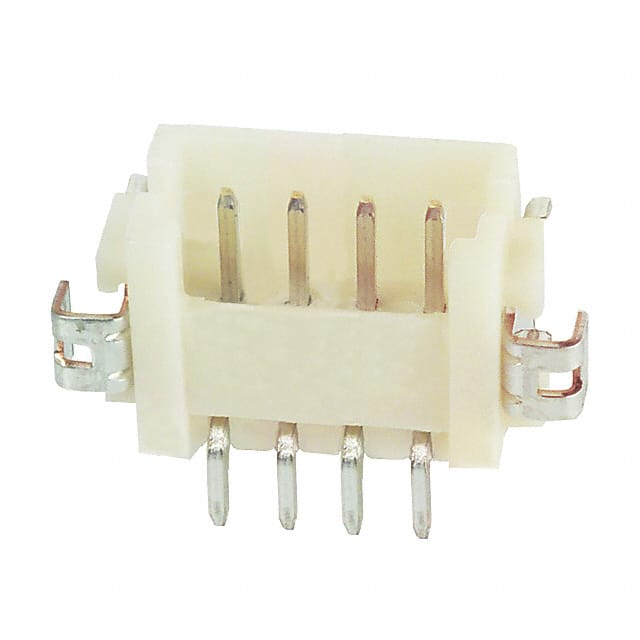

The Hirose DF13A-4P-1.25H(21) is a 4 position, single row, surface mount right angle header from the DF13A series. It features a 1.25mm pitch and a shrouded 4-wall design for secure mating. The connector is rated for 1A current and 150V voltage, with an operating temperature range of -35°C to 85°C.
This header uses square brass contacts with tin plating and a polyamide (nylon) insulator rated UL94 V-0. The beige insulation and detent lock fastening provide reliable board-to-cable/wire connections. Solder termination and solder retention features ensure robust mounting.
Designed for compact applications, the surface mount right angle orientation saves PCB space. The part number suffix (21) typically indicates tape and reel packaging for automated assembly.
It has 4 positions in a single row.
The pitch is 1.25mm.
Rated 1A current and 150V voltage.
Surface mount, right angle orientation.
-35°C to 85°C.
