| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
58 pcs
|
58 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

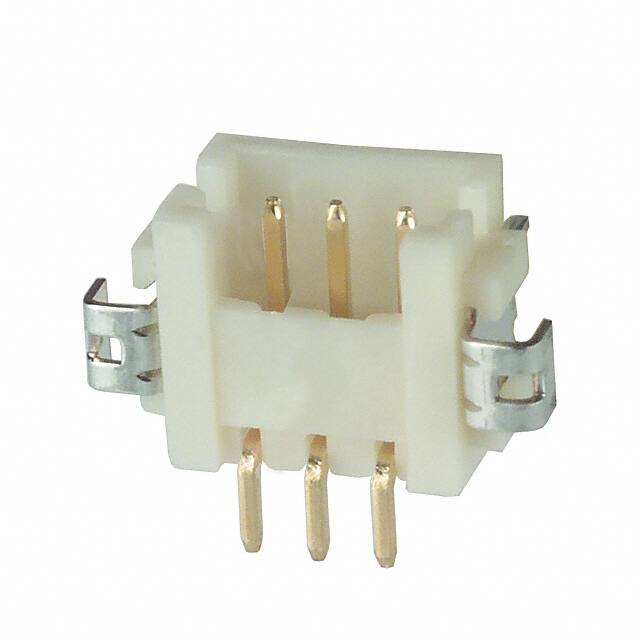

This is a 3-position male pin header connector from Hirose Electric, designed for board-to-cable/wire applications. It features a 1.25mm pitch, surface mount right angle orientation, and gold-plated brass contacts with 8.00µin (0.203µm) thickness for reliable conductivity.
The header is shrouded with a 4-wall design and includes a detent lock for secure mating, as well as solder retention for reliable attachment to the PCB. The insulation is made of polyamide (PA) nylon in beige color, with a flammability rating of UL94 V-0.
Electrically, the connector is rated for 1A current and 150V voltage. It operates over a temperature range of -35°C to 85°C. The part is compliant with RoHS3 and REACH, and has an MSL rating of 1 (unlimited).
Typical applications include compact electronic devices where space is limited and a secure connection is required. The 1.25mm pitch allows for high-density wiring in consumer electronics, industrial controls, and other portable devices.
3 positions.
1.25mm (0.049 inches).
1A.
150V.
Surface Mount, Right Angle.
Detent Lock.
-35°C to 85°C.
