| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
797 pcs
|
797 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
797 pcs
|
797 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

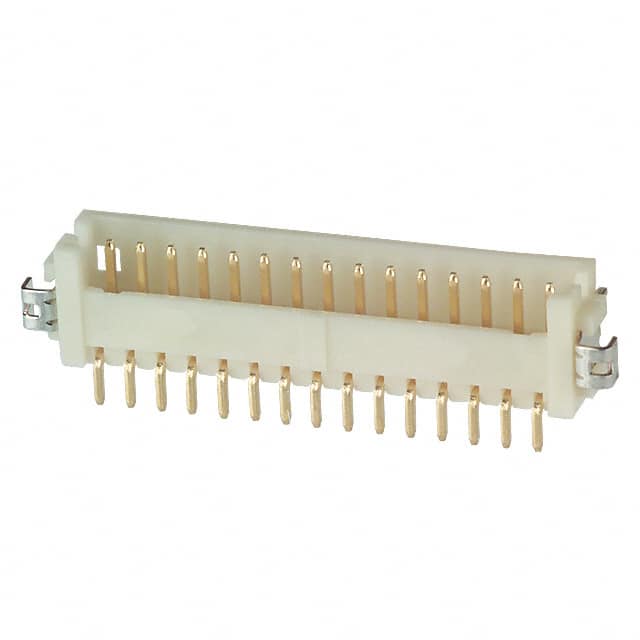

The DF13A-15P-1.25H(51) is a 15-position, 1.25mm pitch surface mount right angle header from Hirose Electric's DF13A series. It is a shrouded 4-wall header with male pin contacts made of brass with a gold finish (8.00µin). The insulation material is polyamide (nylon) in beige color, with a flammability rating of UL94 V-0. Additional features include solder retention for secure assembly.
Electrically, the header is rated for 1A current and 150V voltage. It operates over a temperature range of -35°C to 85°C. Mounting is surface mount, right angle, with solder termination. The fastening type is detent lock, and the contact shape is square. All 15 positions are loaded.
This header is designed for board-to-cable/wire connections where space is limited. The right-angle orientation allows for low-profile connections, while the shrouded design protects contacts during mating. The detent lock ensures secure mating, and the solder retention feature aids in reflow soldering. The component is RoHS and REACH compliant (unverified) and has an MSL of 1 for unlimited floor life.
15 positions.
1.25mm (0.049").
1A.
150V.
Surface mount, right angle.
Gold, 8.00µin (0.203µm) thickness.
-35°C to 85°C.
