| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insertion/Extraction Force | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating | |
| Withstanding Voltage |

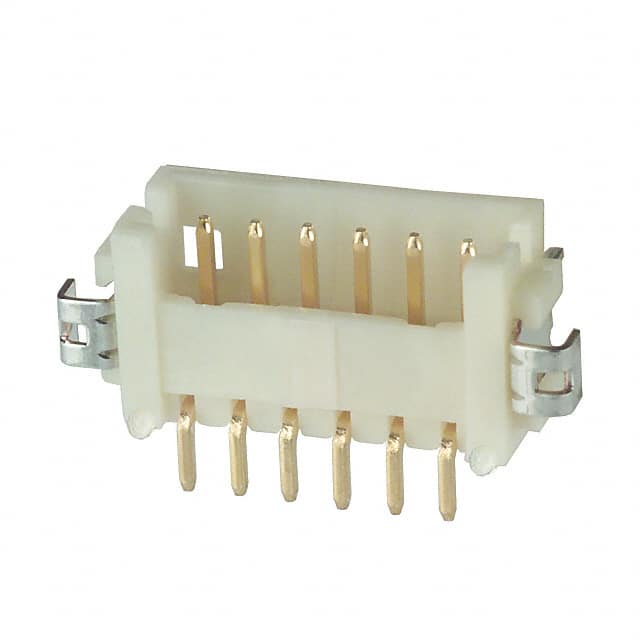

The Hirose DF13-6P-1.25H(50) is a 6-position, single-row, shrouded header from the DF13 series of miniature crimping connectors. It features a 1.25mm pitch and a right-angle surface mount (SMT) design with solder termination. The header is fully shrouded with a 4-wall box structure to prevent mis-insertion and includes board guide and solder retention features for reliable PCB mounting.
Electrical ratings include a current rating of 1A and a voltage rating of 150V AC. Contact resistance is 30 mΩ maximum, insulation resistance is 500 MΩ minimum at 100V DC, and the connector withstands 500V AC for one minute without flashover or breakdown. The operating temperature range is -35°C to +85°C.
The header uses gold-plated brass square pins and a beige polyamide (nylon) insulator with a UL94 V-0 flammability rating. The insulation height is 3.60mm. This connector is designed for board-to-cable/wire applications and is suitable for automatic mounting via embossed tape packaging.
The pitch is 1.25mm (0.049 inches).
It has 6 positions, all loaded, in a single row.
The current rating is 1A.
The voltage rating is 150V AC.
It uses surface mount (SMT) right-angle mounting with solder termination.
The operating temperature range is -35°C to +85°C.
Yes, it is listed as RoHS3 compliant and REACH unaffected.
