| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

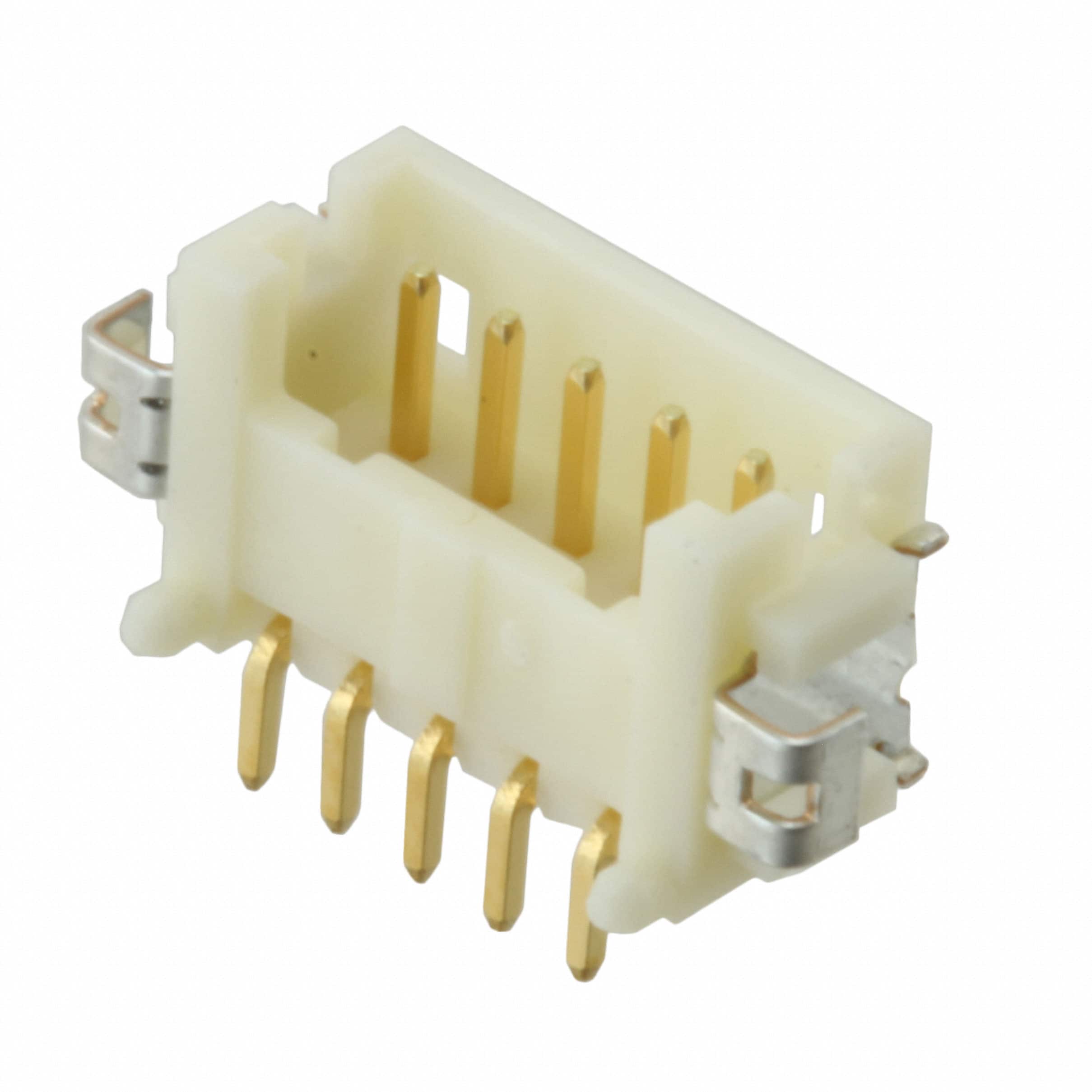

The DF13-5P-1.25H(51) is a 5-position, 1-row shrouded header from Hirose Electric's DF13 series. Designed for board-to-cable/wire connections, this connector features a right-angle surface mount termination with a 1.25mm pitch, making it suitable for compact and space-constrained PCB layouts.
The header employs a 4-wall shrouded design with a detent lock fastening system to ensure secure mating. Contacts are made of brass with a gold finish of 8.00µin (0.203µm) for reliable signal integrity. The beige nylon insulator (UL94 V-0 rated) includes a board guide and solder retention features for ease of assembly.
Rated for 1A current and 150V, it operates over a temperature range of -35°C to 85°C. The connector is RoHS3 and REACH compliant, with an MSL rating of 1 (unlimited). It is commonly used in consumer electronics, industrial control, and other applications requiring a reliable wire-to-board interface.
It has 5 positions in a single row.
The pitch is 1.25mm.
The current rating is 1A.
The voltage rating is 150V.
It uses surface mount, right angle mounting.
