| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1,342 pcs
|
1342 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |||||||||
|
198 pcs
$1.63
|
198 pcs |
$1.63
|
1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Flammability Rating | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

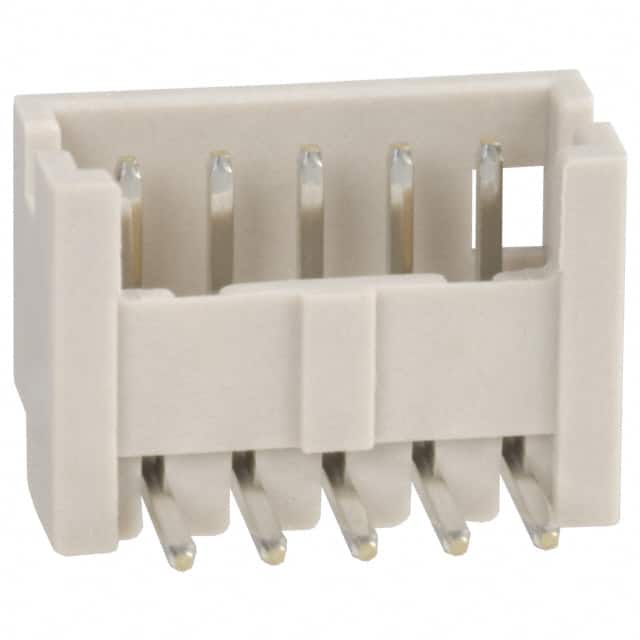

The Hirose Electric DF13-5P-1.25DS(20) is a 5-position, single row, 1.25mm pitch header designed for board-to-cable/wire applications. It features a shrouded 4-wall design with a detent lock fastening system for secure mating. The connector is right-angle mounted and terminated via through hole solder.
Electrical ratings include a current rating of 1A and a voltage rating of 150V. The contacts are made of brass with a tin finish (1.00µm thickness) and have a square male pin shape. The insulator is beige polyamide (PA) nylon with a UL94 V-0 flammability rating.
The operating temperature range is -35°C to 85°C. The insulation height is 3.60mm and the contact length is 2.30mm. This part is RoHS3 compliant and REACH unaffected.
The pitch is 1.25 mm.
It has 5 positions in a single row, all loaded.
The current rating is 1 A.
The voltage rating is 150 V.
It is through hole, right angle mounting with solder termination.
The operating temperature range is -35°C to 85°C.
The contact finish is tin with a thickness of 1.00 µm.
