| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
114 pcs
|
114 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

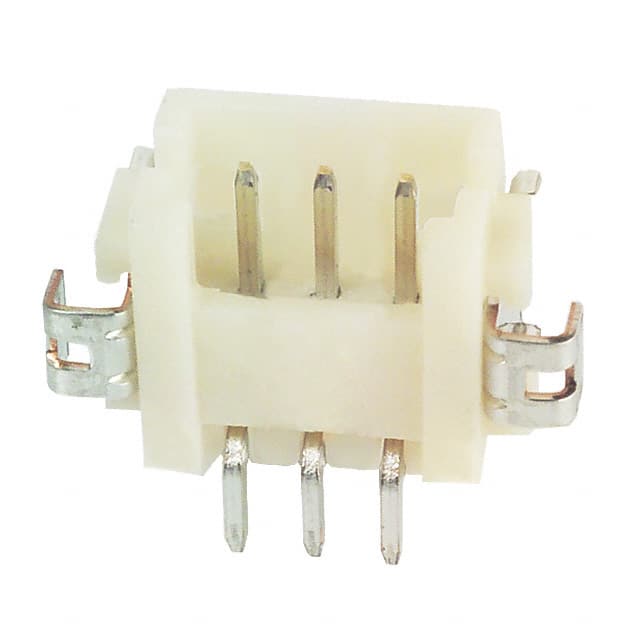

The Hirose DF13-3P-1.25H(75) is a 3-position header designed for board-to-cable/wire connections. It features a right-angle surface mount interface with a 1.25mm pitch, making it suitable for space-constrained PCB layouts. The connector has a shrouded 4-wall design with a detent lock for secure mating and retention.
The header is rated for 1A current and 150V voltage, with an operating temperature range of -35°C to 85°C. Contacts are made of brass with a tin finish, and the insulator is polyamide (nylon) with UL94 V-0 flammability rating. Features include board guide and solder retention for reliable assembly.
The component is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited). It is suitable for low-power signal and power applications in consumer electronics, industrial equipment, and other compact devices.
It has 3 positions.
The pitch is 1.25mm.
The current rating is 1A.
The voltage rating is 150V.
Surface mount, right angle.
-35°C to 85°C.
Tin.
