| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,412 pcs
|
2412 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

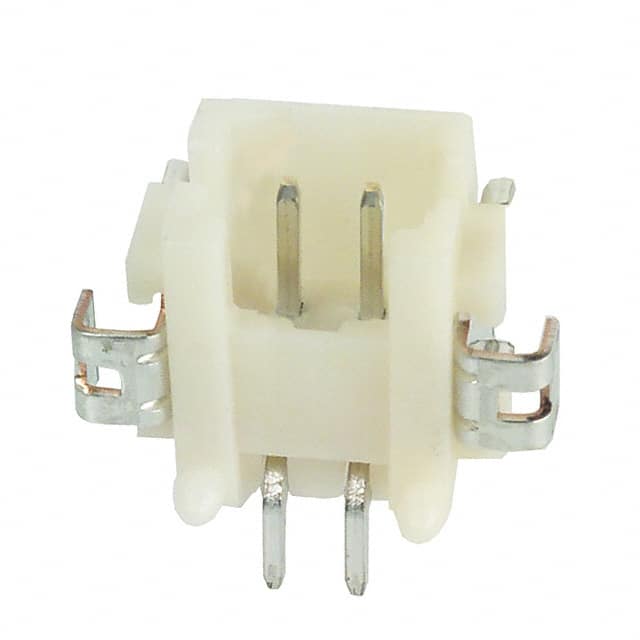

The Hirose DF13-2P-1.25H(75) is a 2-position male pin rectangular connector header designed for board-to-cable/wire connections. It features a 1.25mm pitch and a surface mount, right angle mounting style, making it suitable for compact and space-constrained applications. The header is fully shrouded with a 4-wall design and incorporates a detent lock fastening mechanism for secure mating.
The header is constructed with a beige polyamide (nylon) insulator rated UL94 V-0, and brass contacts with a tin finish of 39.4µin (1.00µm). It includes board guide and solder retention features for reliable automated assembly. Electrically, it is rated for 1A current and 150V voltage, with an operating temperature range of -35°C to 85°C.
This connector is designed for surface mount technology (SMT) processes and is terminated via solder. The single-row, 2-position configuration with all positions loaded provides a straightforward interconnection solution. Its shrouded design offers protection for the contacts and alignment during mating.
The header has 2 positions.
The pitch is 1.25mm (0.049 inches).
The current rating is 1A.
The voltage rating is 150V.
The mounting type is surface mount, right angle.
The operating temperature range is -35°C to 85°C.
The flammability rating is UL94 V-0.
