| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,245 pcs
|
5245 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5,217 pcs
|
5217 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

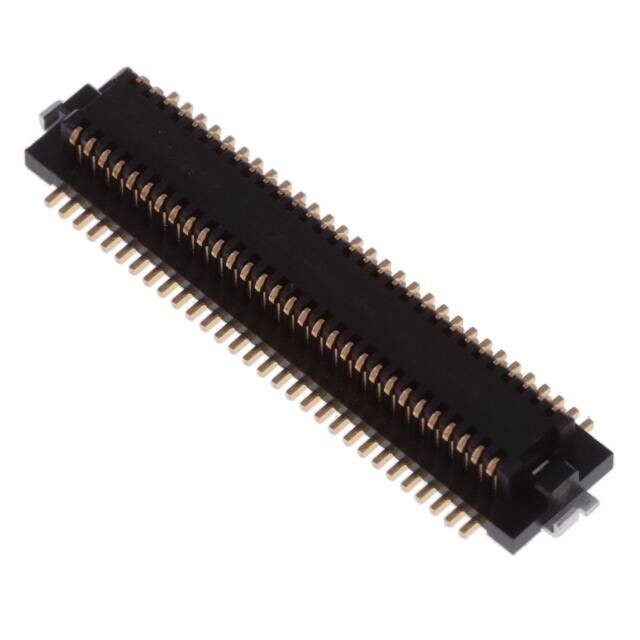

The Hirose DF12NB(3.0)-60DS-0.5V(51) is a board-to-board receptacle connector from the DF12N series. It features 60 positions arranged in 2 rows with a fine 0.5mm pitch, making it suitable for high-density mezzanine stacking applications. The connector type is receptacle with center strip contacts, designed for surface mount mounting.
Key specifications include a mated stack height of 3mm and a height above board of 2.2mm. The contacts are finished with gold plating of 0.203µm thickness, providing reliable conductivity and corrosion resistance. The connector includes a solder retention feature to ensure secure attachment during reflow soldering.
This connector is targeted for use in compact electronic devices where board-to-board interconnections are required. The 0.5mm pitch allows for space savings while maintaining signal integrity. The DF12N series is known for its robust design and compatibility with automated assembly processes.
Environmental compliance includes RoHS3 and REACH unaffected status, and the moisture sensitivity level is rated as 1 (unlimited). Packaging options include tape and reel, cut tape, and digi-reel from distributors. Note that electrical ratings such as current and voltage are not specified in available data; consult the datasheet for full specifications.
60 positions.
0.5mm.
Surface Mount.
2 rows.
Gold with 0.203µm thickness.
3mm.
Solder retention.
