| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
79 pcs
|
79 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

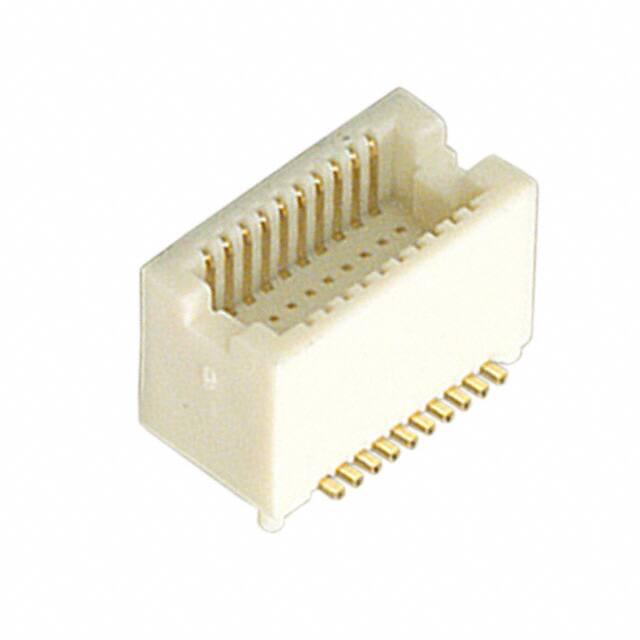

The DF12D(5.0)-20DP-0.5V(81) is a board-to-board header connector from Hirose Electric's DF12 series. It features 20 positions arranged in 2 rows with a 0.50mm pitch, making it suitable for high-density interconnections. The connector uses outer shroud contacts with a gold finish for reliable electrical performance. It is designed for surface mount mounting and has a height above board of 4.30mm, with a mated stacking height of 5mm. The connector includes a board guide feature for alignment during assembly. It is packaged in tape and reel for automated placement. This connector is RoHS3 and REACH compliant, with an MSL of Level 1. Typical applications include mezzanine board-to-board connections in compact electronic devices.
It has 20 positions arranged in 2 rows.
The pitch is 0.50mm.
Surface mount.
Gold.
5mm.
Yes, it includes a board guide.
Yes, it is RoHS3 compliant.
