| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

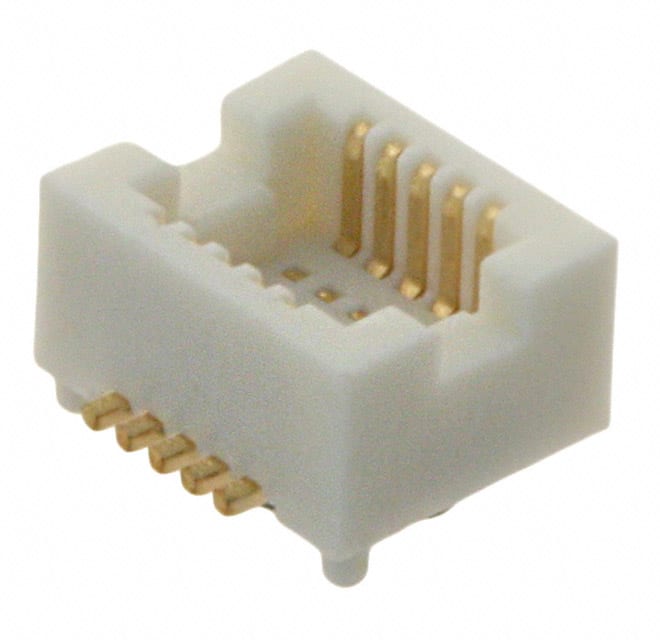

The Hirose DF12D(3.0)-10DP-0.5V(81) is a 10-position, 2-row surface mount header with outer shroud contacts, part of the DF12D series designed for board-to-board stacking applications. It features a 0.5mm pitch and a mated stacking height of 3mm, making it suitable for compact, high-density interconnects. The connector includes a board guide feature for alignment during assembly. Contacts are finished with gold for reliable conductivity. The component is RoHS3 compliant and REACH unaffected, with an MSL rating of Level 1 (unlimited). It is supplied in tape and reel packaging for automated assembly. This connector is ideal for mezzanine board stacking where space is limited and a low profile is required.
10 positions.
0.5mm (0.020 inches).
Surface mount.
2 rows.
Gold.
3mm.
Board guide.
