| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Resistance | |
| Current Rating | |
| Durability | |
| Features | |
| Height Above Board | |
| Humidity (Steady state) | |
| Insulation Resistance | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Pitch | |
| Resistance to Soldering Heat | |
| Storage Temperature Range | |
| Temperature Cycle | |
| Vibration | |
| Voltage Rating | |
| Withstanding Voltage |

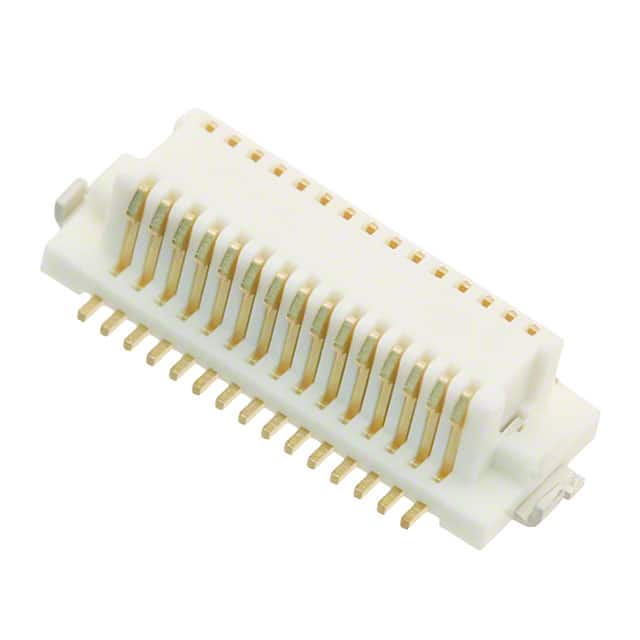

The Hirose Electric DF12B-30DS-0.5V(86) is a 30 position, 0.5mm pitch, 2-row SMT board-to-board receptacle connector from the DF12 series. It features gold-plated contacts with a thickness of 0.203µm and includes solder retention for reliable mounting.
This connector is rated for 0.3A per contact and 50V AC, with a contact resistance of 50mΩ maximum and insulation resistance of 500MΩ minimum. It operates over a temperature range of -45°C to +125°C and is designed for automatic mounting with a vacuum pick-up area.
The DF12B-30DS-0.5V(86) supports mated stacking heights of 3.5mm, 4mm, and 5mm, making it suitable for various board-to-board spacing requirements. It is RoHS3 compliant and has an MSL of Level 1.
The pitch is 0.5mm.
It has 30 positions.
The current rating is 0.3A.
The voltage rating is 50V AC.
It uses surface mount (SMT) mounting.
The operating temperature range is -45°C to +125°C.
It supports mated stacking heights of 3.5mm, 4mm, and 5mm.
