| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100,000 pcs
|
100000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Housing Material | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Packaging Specification | |
| Packaging Type | |
| Pitch |

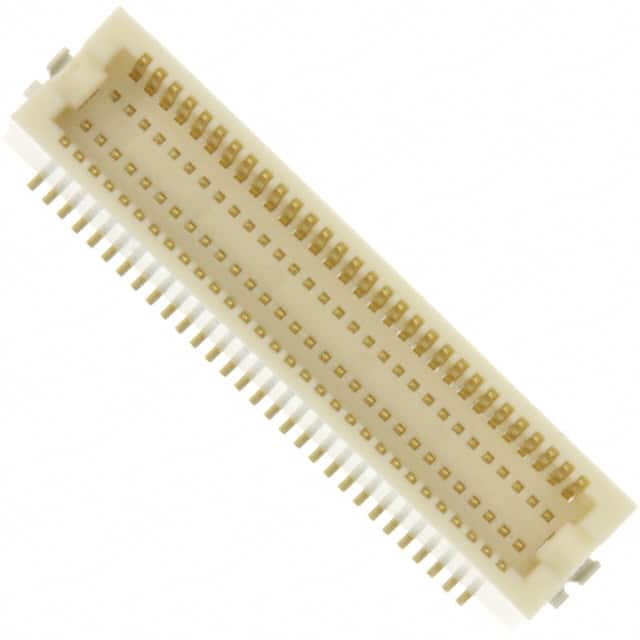

The Hirose Electric DF12(5.0)-60DP-0.5V(86) is a 60-position, 2-row board-to-board connector from the DF12 series. It features a 0.5mm pitch and outer shroud contacts, making it suitable for high-density mezzanine applications. The connector is surface mount and has a mated stacking height of 5mm.
The connector is constructed with a PA46 (Beige) housing and gold-plated contacts with a thickness of 8.00µin (0.203µm). It includes board guide and solder retention features for reliable assembly. The product is packaged in tape and reel with aluminum deaerated packing.
This connector is designed for applications requiring a compact, high-density board-to-board connection. The 0.5mm pitch allows for significant space savings on the PCB. The gold contact finish ensures reliable electrical performance over multiple mating cycles.
The pitch is 0.50mm (0.020").
It has 60 positions arranged in 2 rows.
It is surface mount.
The contacts are gold plated with a thickness of 8.00µin (0.203µm).
The mated stacking height is 5mm.
The housing is made of PA46 (Beige).
It includes board guide and solder retention features.
