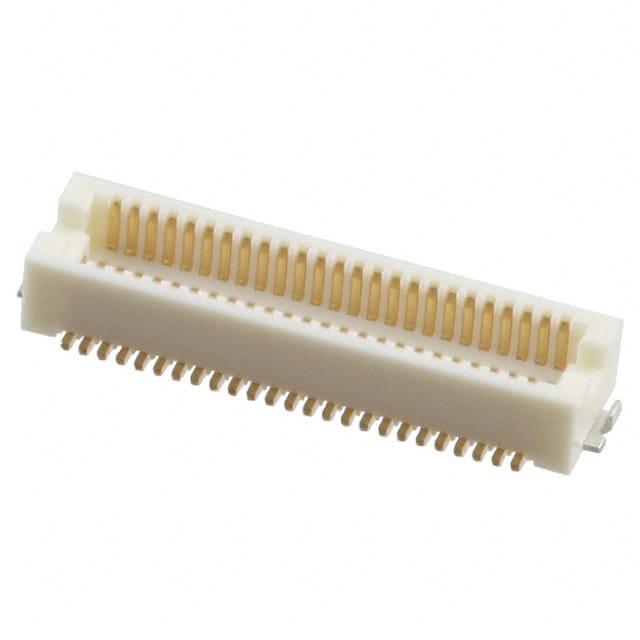

DF12(5.0)-50DP-0.5V(86) Hirose DF12(5.0)-50DP-0.5V(86) is a 50-position, 0.5mm pitch board-to-board header connector with gold-plated contacts. It features surface mount mounting, 5mm stacking height, and board guide with solder retention.
Mfr Part #:

DF12(5.0)-50DP-0.5V(86)

Available from 3 distributors
Mfr Name: Hirose Electric
Hirose Electric
Hirose DF12(5.0)-50DP-0.5V(86) is a 50-position, 0.5mm pitch board-to-board header connector with gold-plated contacts. It features surface mount mounting, 5mm stacking height, and board guide with solder retention.
✓ Total Stock: 5,025 pcs

DF12(5.0)-50DP-0.5V(86) Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
15 pcs
On Request
15 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DF12(5.0)-50DP-0.5V(86) Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Features
Height Above Board
Housing Material
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
View Similar Products (0)

DF12(5.0)-50DP-0.5V(86) Description

Short technical summary and product information.

The DF12(5.0)-50DP-0.5V(86) is a 50-position, 2-row, 0.5mm pitch board-to-board header connector from Hirose Electric. It is part of the DF12 series and features outer shroud contacts for reliable mating. The connector has a surface mount mounting type and a mated stacking height of 5mm. Contacts are gold-plated with a thickness of 8µin (0.203µm). The housing is made of PA9T (black) and includes board guide and solder retention features for secure placement during assembly. Moisture sensitivity level is MSL 1 (unlimited), and the packaging is no bag packing, eliminating the need for moisture protection. This connector is suitable for mezzanine board-to-board applications requiring a compact, high-density interconnect.

DF12(5.0)-50DP-0.5V(86) Quick Information

Product Type: Board-to-Board Connector Header
Series: DF12
Canonical Name: Hirose DF12 Series 50 Position 0.5mm Pitch Header, Outer Shroud Contacts, Surface Mount
Subcategory: Board-to-Board Connectors

DF12(5.0)-50DP-0.5V(86) Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DF12(5.0)-50DP-0.5V(86) Features

  • 50 positions with 0.5mm pitch.
  • Gold-plated contacts for reliable connection.
  • Surface mount mounting for compact design.
  • 5mm mated stacking height.
  • Board guide and solder retention features.

DF12(5.0)-50DP-0.5V(86) Applications

  • Used in mezzanine board-to-board connections.
  • Suitable for compact electronic devices.
  • Ideal for high-density interconnect applications.
  • Common in consumer electronics and industrial equipment.

DF12(5.0)-50DP-0.5V(86) FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the DF12(5.0)-50DP-0.5V(86) have?

50 positions.

What is the pitch of this connector?

0.50mm (0.020").

What is the mounting type?

Surface mount.

What is the mated stacking height?

5mm.

What is the contact finish?

Gold, 8µin (0.203µm) thickness.

What is the moisture sensitivity level?

MSL 1 (unlimited).

What features does this connector have?

Board guide and solder retention.
