| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

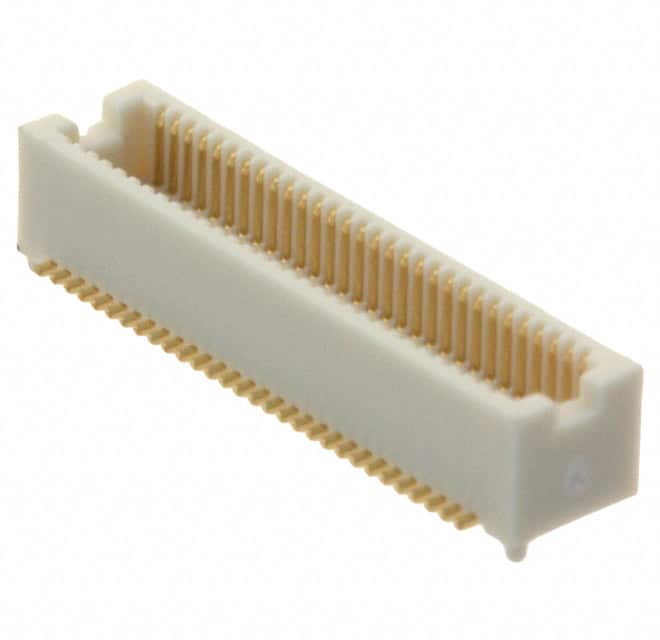

The Hirose DF12(4.0)-60DP-0.5V(86) is a 60 position header connector from the DF12 series, featuring outer shroud contacts on a 0.50mm pitch. This surface mount connector has two rows of gold plated contacts with a contact finish thickness of 8.00µin (0.203µm).
The connector is designed for a mated stacking height of 4mm and has a height above board of 0.130" (3.30mm). It includes board guide and solder retention features for reliable assembly. The part is RoHS3 compliant and has an MSL rating of 1 (unlimited).
This connector is suitable for board-to-board mezzanine applications where a compact, high-density interconnect is required. The gold contact finish ensures reliable signal integrity over multiple mating cycles.
The pitch is 0.50mm (0.020").
It has 60 positions arranged in 2 rows.
Surface mount.
Gold with a thickness of 8.00µin (0.203µm).
4mm.
