| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
491 pcs
|
491 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
491 pcs
|
491 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

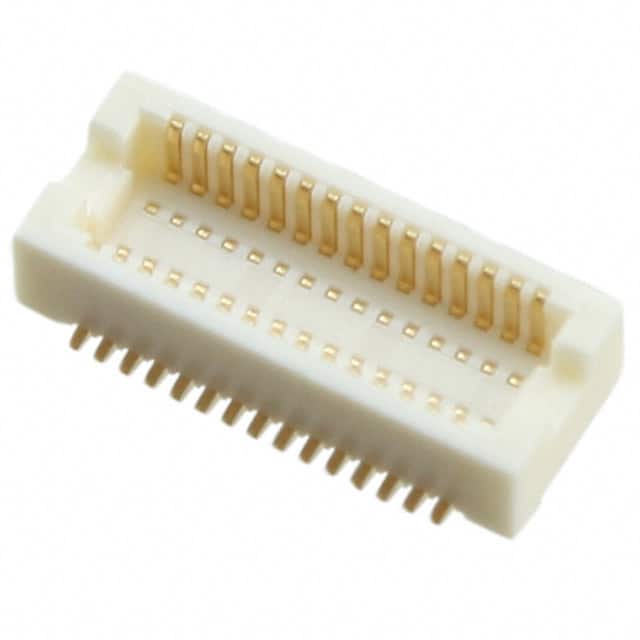

The DF12(4.0)-30DP-0.5V(86) is a board-to-board connector from Hirose Electric's DF12 series. This header connector features 30 positions arranged in 2 rows with a 0.5mm pitch, making it suitable for high-density designs. It is surface mountable with a height above board of 0.130 inches (3.30mm) and a mated stacking height of 4mm. The contacts are gold plated with a thickness of 8.00µin (0.203µm) for reliable electrical performance. The connector includes board guide and solder retention features for secure assembly. It is RoHS3 compliant and REACH unaffected. The part is available in tape and reel packaging for automated manufacturing. Designed for mezzanine board-to-board stacking configurations, this connector provides a compact solution for space-constrained electronic assemblies.
30 positions.
0.50mm (0.020 inches).
Surface Mount.
Gold, 8.00µin (0.203µm).
4mm.
Board guide and solder retention.
Yes, RoHS3 Compliant (unverified).
