| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Resistance | |
| Current Rating | |
| Features | |
| Height Above Board | |
| Insulation Resistance | |
| Lead Spacing | |
| Mated Stacking Height | |
| Mated Stacking Heights | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Pitch | |
| Storage Temperature Range | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating | |
| Withstanding Voltage |

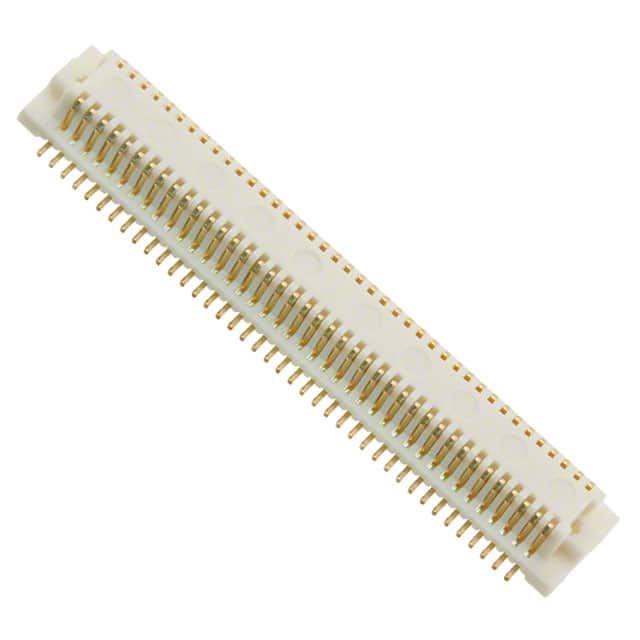

The Hirose DF12(3.0)-80DS-0.5V(86) is a 0.5mm pitch board-to-board connector from the DF12 series. It is a receptacle with center strip contacts, featuring 80 positions arranged in 2 rows. The connector is surface mount and designed for a mated stacking height of 3mm. It includes board guide and solder retention features for reliable assembly. The contacts are gold plated with 8.00µin thickness. Electrically, it is rated for 0.3A current and 50V AC, with a contact resistance of 50mΩ max and insulation resistance of 500MΩ min. The operating temperature range is -45°C to +125°C. The connector is supplied on embossed tape for automatic mounting and is RoHS3 and REACH compliant.
The pitch is 0.50mm.
It has 80 positions.
The current rating is 0.3A.
The voltage rating is 50V AC.
Surface mount.
-45°C to +125°C.
3mm.
