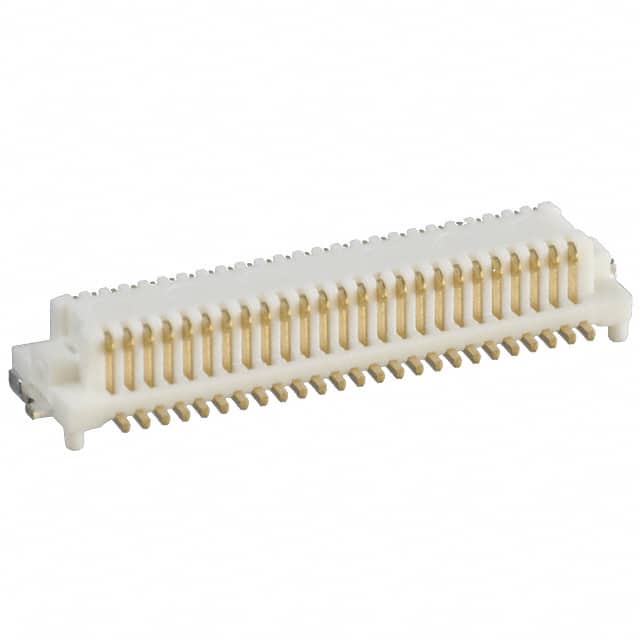

The DF12(3.0)-50DS-0.5V(86) is a 50-position, 2-row, 0.5mm pitch surface mount board-to-board receptacle connector from Hirose Electric's DF12 series. It is designed for a 3mm stacking height and features gold contact finish with 8µin thickness for reliable signal integrity. The connector includes a board guide and solder retention features for secure mounting. It is supplied in embossed tape packaging for automated pick-and-place assembly.
Electrically, this connector is rated for 0.3A per contact and 50V AC, with a maximum contact resistance of 50mΩ. It has an insulation resistance of 500MΩ minimum and can withstand 150V AC for one minute. The operating temperature range is -45 to +125°C including temperature rise, with a storage temperature of -10 to +60°C for long-term storage prior to mounting. Durability is specified at 50 cycles.
Typical applications include mezzanine board-to-board connections in compact electronic devices such as portable electronics, IoT modules, and industrial control systems. The 0.5mm pitch and low profile enable high-density designs while maintaining reliable electrical performance.
It has 50 positions arranged in 2 rows.
The pitch is 0.50mm (0.020").
The current rating is 0.3A per contact.
The voltage rating is 50V AC.
It is a surface mount (SMT) connector.
The operating temperature range is -45 to +125°C, including temperature rise caused by current flow.
It is designed for a 3mm mated stacking height.
