| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Resistance | |
| Current Rating | |
| Durability (Mating Cycles) | |
| Features | |
| Height Above Board | |
| Humidity Resistance (Steady State) | |
| Insulation Resistance | |
| Mated Stacking Height | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Humidity Range | |
| Operating Temperature Range | |
| Pitch | |
| Resistance to Soldering Heat | |
| Storage Humidity Range | |
| Storage Temperature Range | |
| Temperature Cycling | |
| Vibration Resistance | |
| Voltage Rating | |
| Withstanding Voltage |

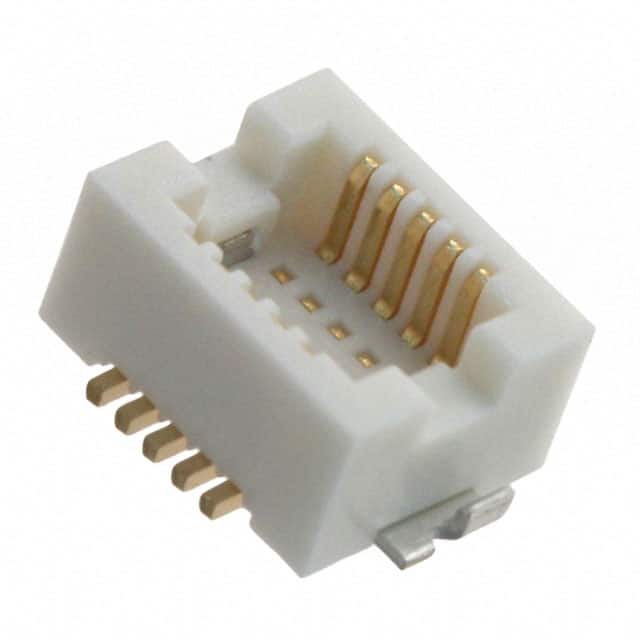

The DF12(3.0)-10DP-0.5V(86) is a 0.5mm pitch board-to-board connector from Hirose Electric's DF12 series. It features 10 positions arranged in 2 rows with a mated stacking height of 3mm. The header has outer shroud contacts and is designed for surface mount soldering. Key electrical specifications include a current rating of 0.3A, voltage rating of 50V AC, and contact resistance maximum of 50 mΩ. The operating temperature range is -45°C to +125°C. The connector includes board guide and solder retention features for reliable assembly. It is supplied with gold contact finish of 0.203µm thickness. The part is RoHS3 compliant and REACH unaffected. This connector is suitable for mezzanine board-to-board applications requiring a compact, low-profile interconnect solution.
10 positions in 2 rows.
0.5mm (0.020")
0.3 A per contact.
50 V AC.
Surface Mount.
3 mm.
-45°C to +125°C.
