| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,500 pcs
|
1500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

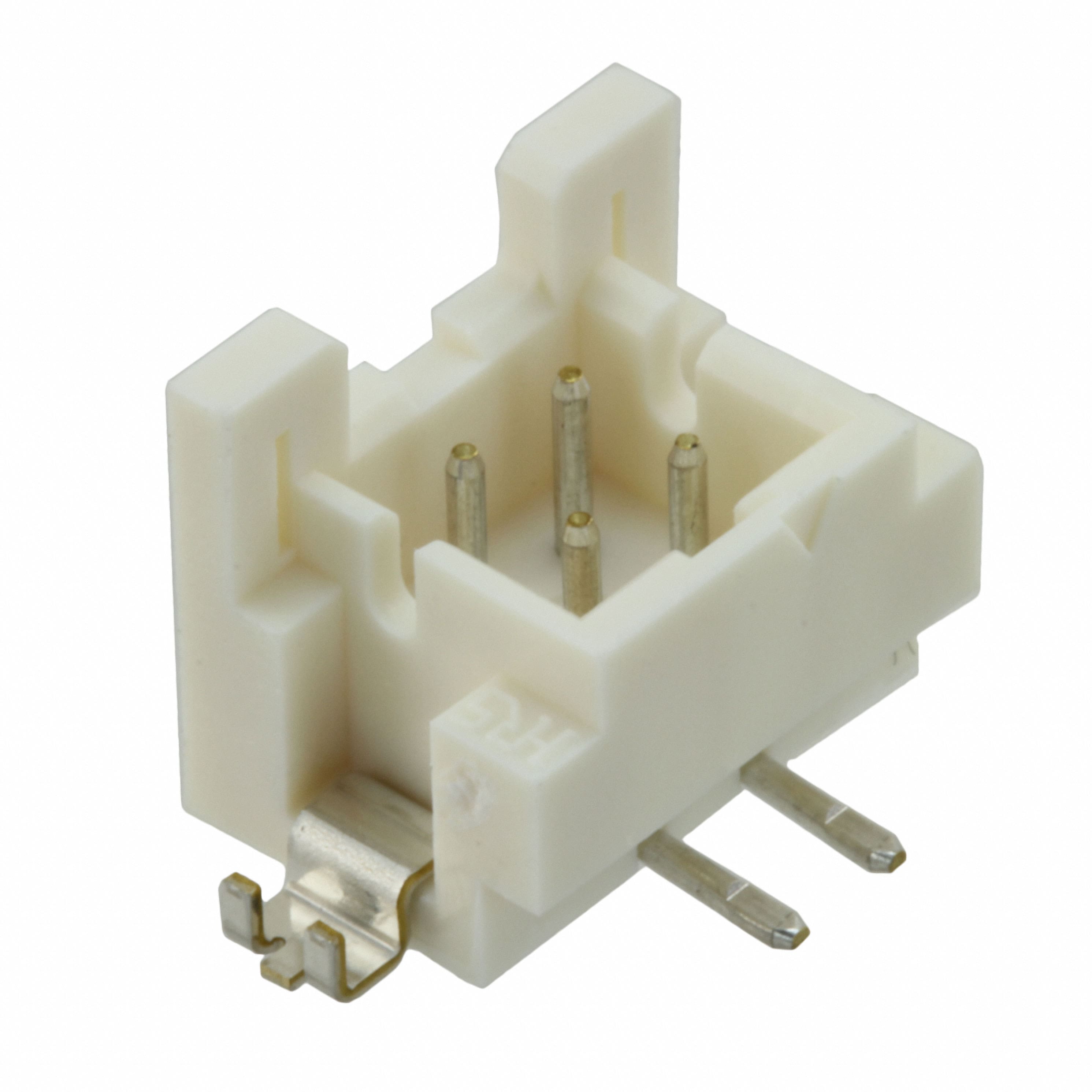

The DF11CZ-4DP-2V(27) is a 4-position, 2-row header connector from Hirose Electric's DF11 series. It features a 2.00mm pitch and is designed for surface mount termination, making it suitable for compact board designs.
Mechanically, the connector is shrouded with a 4-wall design and includes a detent lock for secure mating. It is designed for pick-and-place assembly and includes solder retention features. The insulation is made of beige polyamide (Nylon) with a UL94 V-0 flammability rating. Contacts are brass with tin plating (39.4µin thickness).
Electrically, the header is rated for 2A per contact and 250V. It operates over a temperature range of -30°C to 85°C. The connector is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited).
This connector is suitable for board-to-board or cable-to-board applications in consumer electronics, industrial equipment, and other devices where a reliable 2.00mm pitch connection is required. The surface mount package and pick-and-place features facilitate automated manufacturing.
The connector has 4 positions.
The pitch is 2.00mm.
The current rating is 2A.
The voltage rating is 250V.
Surface mount.
-30°C to 85°C.
Polyamide (Nylon) with UL94 V-0 rating.
