| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

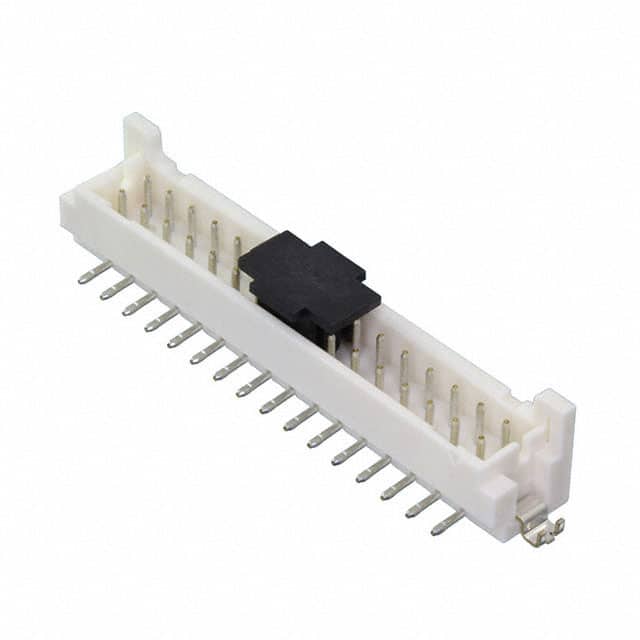

The DF11CZ-32DP-2V(27) is a 32-position, 2-row, 2.00mm pitch shrouded header from Hirose Electric's DF11 series. It features male pin contacts with a tin finish, surface mount termination with solder retention, and a detent lock fastening mechanism for secure mating. The 4-wall shrouded design protects contacts and promotes alignment.
Key specifications include a current rating of 2A per contact, voltage rating of 250V, and an operating temperature range of -30°C to 85°C. The insulation is made of polyamide (nylon) with UL94 V-0 flammability rating, colored beige. Contact material is brass.
This header supports pick and place assembly for automated manufacturing. It is suitable for board-to-board or cable-to-board applications in industrial and consumer electronics. The insulation height is 7.19mm and the row spacing is 2.00mm.
32 positions.
2.00mm.
2A per contact.
250V.
Surface mount.
-30°C to 85°C.
Yes, RoHS3 compliant.
