| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,500 pcs
|
3500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

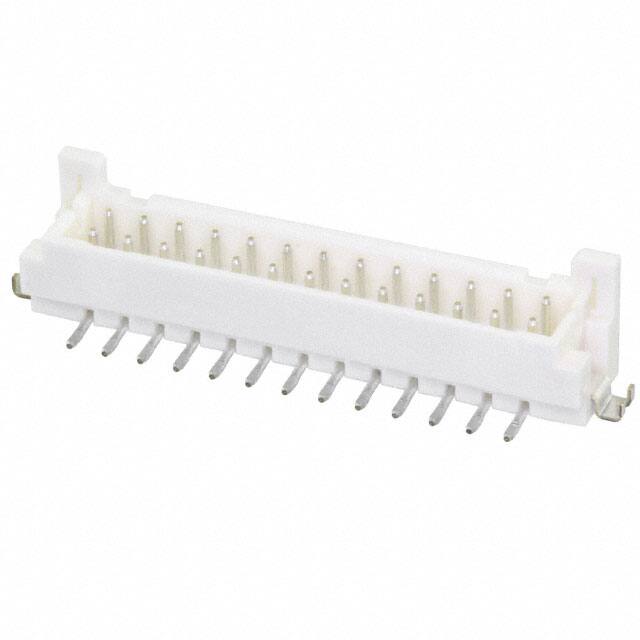

The DF11CZ-26DP-2V(27) is a 26-position header connector from Hirose Electric's DF11CZ series. It features a 2.00mm pitch and 2 rows, suitable for board-to-board or cable-to-board applications. The connector is surface mount with solder termination and includes pick-and-place and solder retention features for automated assembly. The housing is made of polyamide (nylon) with a beige color and a UL94 V-0 flammability rating. It is shrouded with a 4-wall design and detent lock for reliable connection. The contacts are brass with tin plating, rated for 2A per contact and 250V. The operating temperature range is -30°C to 85°C. Packaging is tape and reel for SMT assembly.
26 positions.
2.00mm (0.079").
2A per contact.
250V.
Surface mount.
-30°C to 85°C.
Polyamide (PA), Nylon.
