| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,009 pcs
|
2009 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
185 pcs
|
185 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Current Rating (Maximum @ Wire Size 22-26 AWG) | |
| Current Rating (Maximum @ Wire Size 28 AWG) | |
| Current Rating (Maximum @ Wire Size 30 AWG) | |
| Fastening Type | |
| Humidity (Steady state) | |
| Insertion/Extraction Force | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Material Flammability Rating | |
| Mating Durability | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Humidity Range | |
| Operating Temperature | |
| Operating Temperature Range | |
| Overall Contact Length | |
| Pitch | |
| Resistance to Soldering Heat | |
| Row Spacing | |
| Shrouding | |
| Storage Humidity Range | |
| Storage Temperature Range | |
| Style | |
| Temperature Cycle | |
| Termination | |
| UL/CSA | |
| Vibration | |
| Voltage Rating | |
| Withstanding Voltage | |
| current_rating (Unspecified condition) |

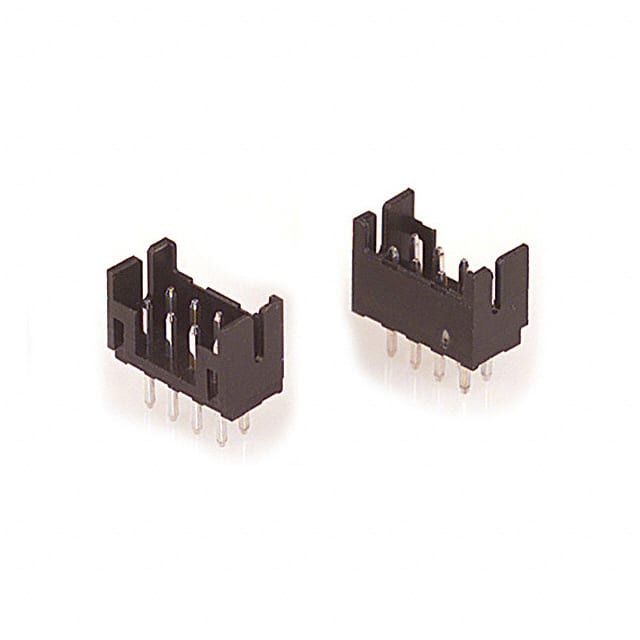

The DF11-8DP-2DSA(24) is a 2.00mm pitch double-row header connector from the Hirose DF11 series. It has 8 positions arranged in 2 rows, with male square pins made of brass with tin plating. The connector features a shrouded 4-wall design with a detent lock fastening mechanism, providing secure mating. It is designed for through hole mounting with solder termination. The header is rated for 2A per pin when using 22-26 AWG wire, 1A for 28 AWG, and 0.5A for 30 AWG. The voltage rating is 250V AC/DC. Contact resistance is 30mΩ maximum, and insulation resistance is 1000MΩ minimum. The operating temperature range is -30°C to +85°C. The insulation material is black polyamide (nylon) with a UL94 V-0 flammability rating. The connector is UL and CSA approved (UL E52653, CSA LR95109) and compliant with RoHS, REACH, and MSL level 1. It is suitable for board-to-board or cable connections, commonly used in business equipment such as copiers and printers.
8 positions.
2.00mm.
2A per pin for 22-26 AWG, 1A for 28 AWG, 0.5A for 30 AWG.
250V AC/DC.
Through hole.
-30°C to +85°C.
Polyamide (Nylon) with UL94 V-0 rating.
