| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,188 pcs
|
2188 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

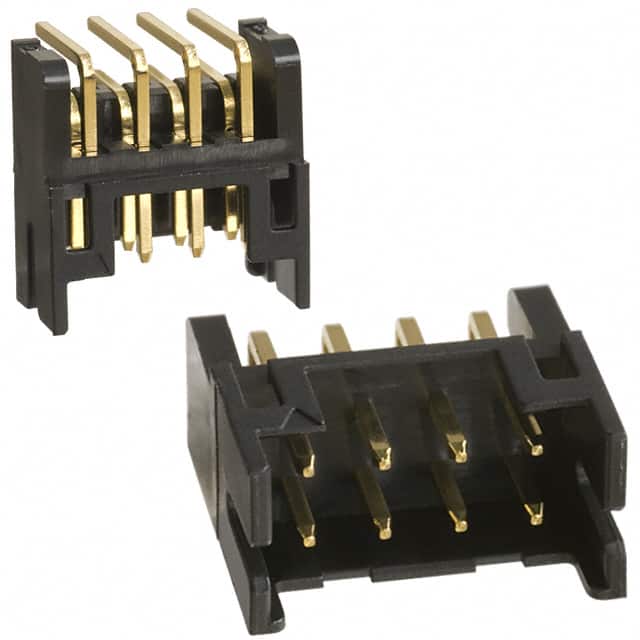

The Hirose Electric DF11-8DP-2DS(52) is a 8-position, 2-row header connector with a 2.00mm pitch. It features a right-angle through-hole mounting style and a shrouded 4-wall design with a detent lock for secure mating. The contacts are made of brass with a gold finish of 8.00µin (0.203µm) and are square in shape. The insulation is black polyamide (PA) nylon with a UL94 V-0 flammability rating.
This connector is rated for a current of 2A and a voltage of 250V, with an operating temperature range of -40°C to 85°C. It is suitable for board-to-board or cable-to-board applications where a compact, reliable connection is required. The contact length is 3.00mm and the insulation height is 5.00mm.
The DF11 series is known for its space-saving design and robust locking mechanism. This particular variant has all 8 positions loaded and uses a detent lock fastening type. The connector is RoHS3 compliant and has an MSL of Level 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.91 | $1.91 |
| 48+ | $1.45 | $1.45 |
| 144+ | $1.34 | $1.34 |
| 528+ | $1.23 | $1.23 |
| 1,008+ | $1.17 | $1.17 |
| 5,040+ | $1.05 | $1.05 |
| 10,032+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 8 positions arranged in 2 rows.
The pitch is 2.00mm (0.079 inches).
The current rating is 2A.
The voltage rating is 250V.
Through hole, right angle.
-40°C to 85°C.
Gold, 8.00µin (0.203µm) thickness.
