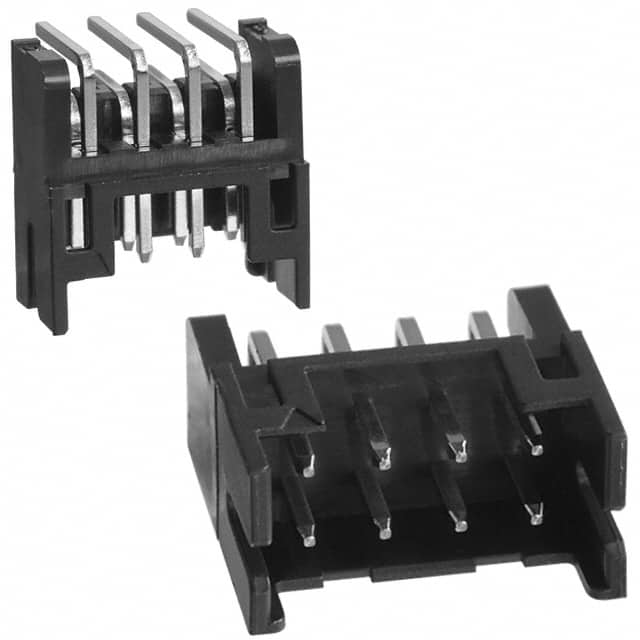

The DF11-8DP-2DS(24) is a 2.00mm pitch, double-row, right-angle shrouded header from the Hirose DF11 series. It has 8 positions (2 rows of 4) with male square pins. The header is through-hole mounted with solder termination, and features a 4-wall shrouded design with a detent lock for secure mating. The insulator is black polyamide (nylon) with a UL94 V-0 flammability rating.
This connector is rated for 2A per pin (all pins powered) and 250V AC/DC, with a contact resistance of 30mΩ maximum and insulation resistance of 1000MΩ minimum. The operating temperature range is -30°C to +85°C. The contacts are made of brass with tin plating (1.00µm thickness). The mating durability is rated for a minimum of 30 cycles.
The DF11 series is designed for board-to-board or cable-to-board applications, and is suitable for business equipment such as copy machines and printers. The right-angle orientation allows for space-saving PCB layouts. The connector is UL/CSA approved (file numbers E52653 and LR95109).
8 positions in 2 rows.
2.00mm (0.079 inches).
2A per pin when all pins are powered.
250V AC/DC maximum.
Through-hole, right-angle.
-30°C to +85°C.
Brass with tin plating (1.00µm thickness).
