| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,525 pcs
|
1525 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
232 pcs
|
232 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

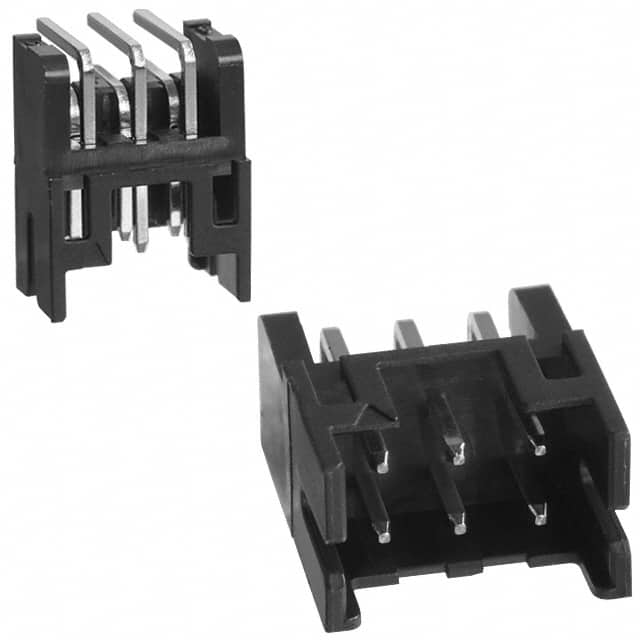

The Hirose DF11-6DP-2DS(24) is a 6 position, 2.00mm pitch, right angle shrouded header designed for board-to-board or cable applications. It features male square pins with tin contact finish and brass contact material, ensuring reliable electrical performance. The connector is fully shrouded with a 4-wall design and includes a detent lock for secure mating.
This header is rated for 2A current and 250V voltage, with an operating temperature range of -40°C to 85°C. The insulation is made of black polyamide (PA) nylon with a UL94 V-0 flammability rating. The through hole, right angle mounting allows for compact PCB layouts.
The DF11-6DP-2DS(24) is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited). It is suitable for a variety of signal interconnection needs in industrial and consumer electronics.
It has 6 positions arranged in 2 rows.
The pitch is 2.00mm with a row spacing of 2.00mm.
It is rated for 2A per contact and 250V.
Through hole, right angle with solder termination.
Yes, it is a shrouded 4-wall header with a detent lock.
-40°C to 85°C.
Tin with a thickness of 1.00µm.
