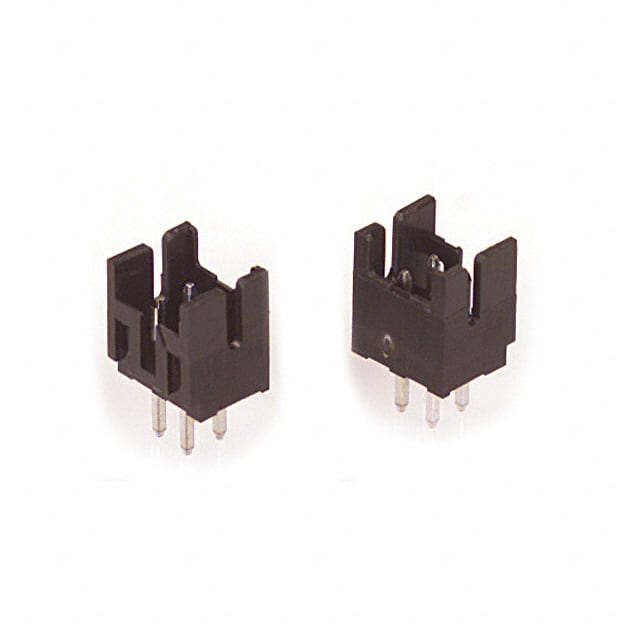

The DF11-4DP-2DSA(24) is a 4-position, 2.00mm pitch through hole header from Hirose Electric's DF11 series. This double-row connector features a shrouded 4-wall design with detent lock fastening, ensuring secure mating. It is rated for 2A current and 250V voltage, with an operating temperature range of -30°C to 85°C. Electrical performance includes insulation resistance of 1000 MΩ minimum at 500V DC, withstanding voltage of 650V AC for 1 minute without flashover, and contact resistance of 30 mΩ maximum at 100mA.
Mechanically, the header uses brass contacts with a tin plating of 1.00µm thickness. The insulation is made of black polyamide (PA) nylon with a UL94 V-0 flammability rating. Contact length is 3.00mm, overall contact length is 7.60mm, and insulation height is 6.60mm. The header is designed for board-to-board or cable applications and is UL (E52653) and CSA (LR95109) certified.
This header is suitable for space-constrained designs in business equipment such as copiers and printers. The 2.00mm double-row layout saves board space while providing multiple signal paths. The through hole mounting with solder termination ensures reliable mechanical attachment. The DF11 series also offers compatible crimp and insulation displacement connectors for cable assembly.
4 positions in 2 rows.
2.00mm pitch with 2.00mm row spacing.
2A per contact.
250V AC.
Through hole with solder termination.
-30°C to 85°C.
Tin plating with 1.00µm thickness.
