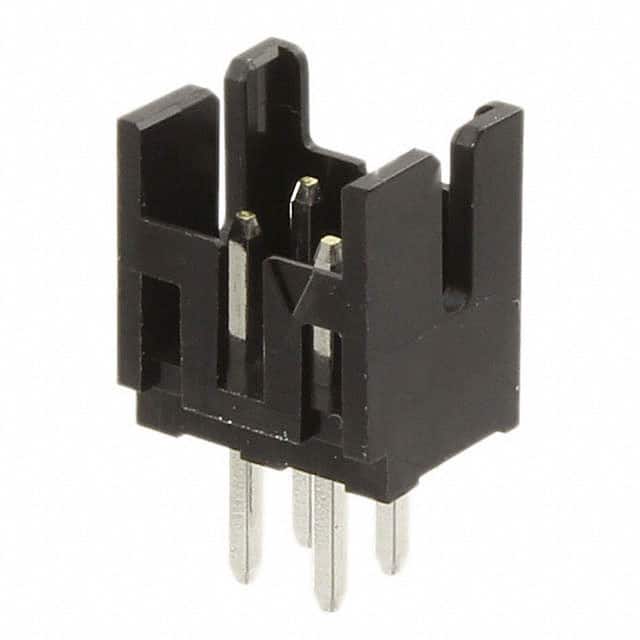

The DF11-4DP-2DSA(08) is a 2mm double-row connector from Hirose Electric's DF11 series, designed for space-saving board-to-board or cable-to-board applications. This header features a 4-wall shrouded design with a detent lock for secure mating, and is available in a through-hole mounting configuration with solder termination. The header has 4 positions arranged in 2 rows with a 2mm pitch and 2mm row spacing, and is housed in black UL94 V-0 rated polyamide insulation. The contacts are made of brass with tin plating (1.00µm thickness), ensuring reliable electrical performance. Electrical ratings include a maximum current of 2A (for crimping AWG22-26 wires) and a voltage rating of 250V AC (crimping) or 100V AC (insulation displacement). The operating temperature range is -30°C to 85°C, with humidity range of 40% to 80%. The insulation resistance is at least 1000MΩ at 500V DC, and the withstanding voltage is 650V AC for 1 minute without flashover. Contact resistance is a maximum of 30mΩ. The insertion force ranges from 0.3N to 4.4N. This connector is suitable for a variety of business equipment such as copy machines and printers. The DF11 series offers both crimping and insulation displacement termination methods, broadening design flexibility. The product is compliant with RoHS and REACH, and has an MSL of 1 (unlimited).
4 positions.
2.00mm.
The maximum current rating is 2A for crimping with AWG22-26 wires.
250V AC for crimping type, 100V AC for insulation displacement type.
Through hole.
-30°C to 85°C.
Tin plating with 1.00µm thickness.
