| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,268 pcs
|
2268 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Standard Package Quantity | |
| Style | |
| Termination | |
| Voltage Rating |

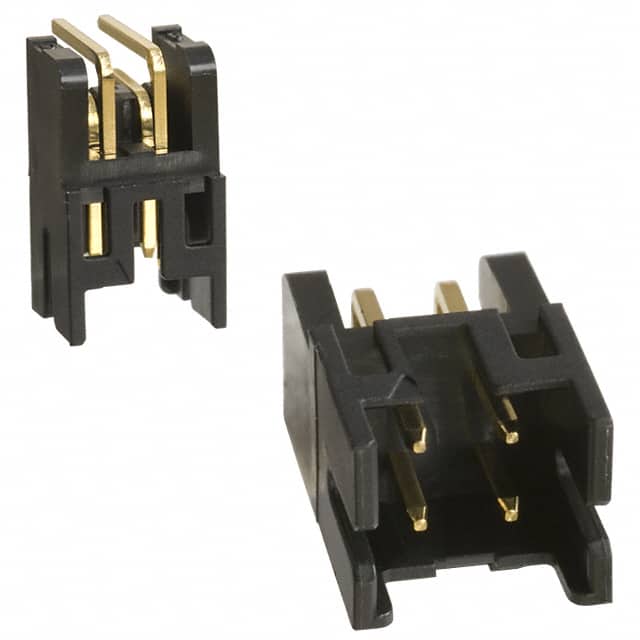

The DF11-4DP-2DS(52) is a 4-position, 2-row, 2.00mm pitch right angle pin header from Hirose Electric's DF11 series. It features a shrouded 4-wall design with a detent lock fastening system for secure mating. The header is through-hole mounted and terminated via solder.
Electrical ratings include a current rating of 2A and a voltage rating of 250V. The operating temperature range is -40°C to 85°C. The insulator is made of black polyamide (nylon) with a UL94 V-0 flammability rating. Contacts are brass with gold plating (8.00µin) and have a square shape.
This connector is suitable for board-to-board or cable applications. The specific number (52) indicates gold plated contacts and tube packaging. The standard package quantity is 81 pieces per tube.
4 positions, all loaded, in 2 rows.
2.00mm (0.079 inches).
2A.
250V.
Through hole, right angle.
-40°C to 85°C.
Gold, 8.00µin (0.203µm) thickness.
