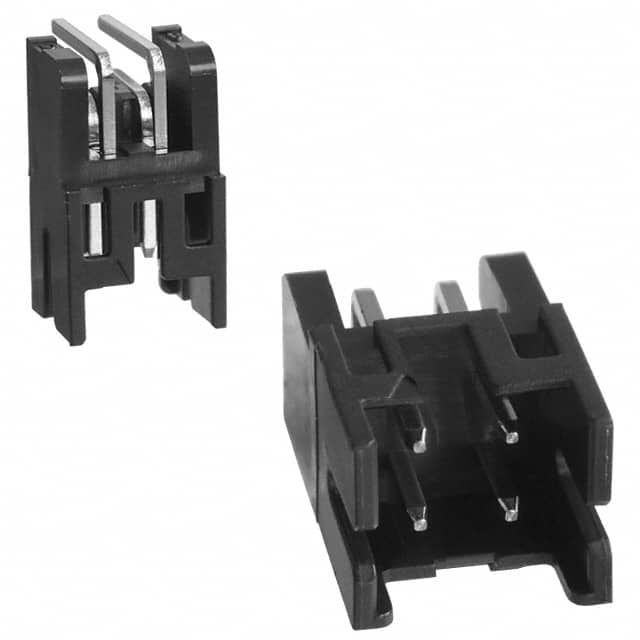

The Hirose Electric DF11-4DP-2DS(24) is a 4-position (2x2) double-row header from the DF11 series, featuring a 2.00mm pitch. It is designed as a shrouded 4-wall connector with a detent lock mechanism, ensuring secure mating and preventing mis-insertion. The header uses through hole, right angle mounting with solder termination, accommodating compact board layouts.
Electrical specifications include a maximum current rating of 2A for AWG #22 to #26 wires (crimping), 1A for AWG #28, and 0.5A for AWG #30. Voltage rating is 250V AC for crimping applications and 100V AC for insulation displacement. The contact resistance is 30mΩ max, and insulation resistance is 1000MΩ min at 500V DC. Withstanding voltage is 650V AC for 1 minute without flashover.
The header is constructed with a black polyamide (nylon) insulator rated UL94 V-0, and brass contacts with tin plating (1.00µm). Operating temperature range is -30°C to 85°C, with storage from -10°C to 60°C. It is suitable for board-to-board or cable-to-board connections in office equipment such as copiers and printers. Compliance includes RoHS, REACH, UL E52653, and CSA LR95109, with MSL Level 1.
4 positions arranged in 2 rows.
2.00mm (0.079 inches).
Up to 2A for AWG #22 to #26, 1A for AWG #28, and 0.5A for AWG #30 (crimping).
250V AC for crimping, 100V AC for insulation displacement.
Through hole, right angle with solder termination.
-30°C to 85°C.
Brass contacts with tin plating, 1.00µm thickness.
