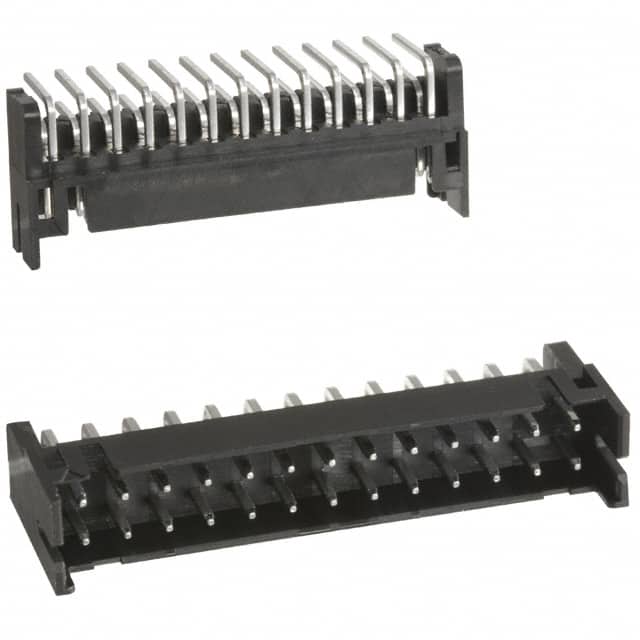

The Hirose DF11-26DP-2DS(24) is a 26-position, 2-row header connector from the DF11 series of 2mm double-row connectors. Designed for board-to-board or cable connections, this through hole right angle header features a shrouded 4-wall box style housing that provides protection and prevents contact mis-insertion. The header uses square tin-plated brass contacts with a contact finish thickness of 1.00 µm and offers a contact length of 3.00mm.
Electrical ratings include a current rating of 2A per contact and a voltage rating of 250V AC. The connector is rated for operating temperatures from -40°C to 85°C and features a UL94 V-0 flammability rating on the black polyamide (nylon) insulator. It incorporates a detent lock fastening mechanism for secure mating.
This header is part of the DF11 series which is compliant with UL/CSA standards (UL E52653, CSA LR95109) and supports RoHS3 and REACH compliance. It is suitable for applications in business equipment such as copiers and printers, as well as other industrial electronic devices requiring a compact, space-saving double-row connector.
The connector has 26 positions arranged in 2 rows, all positions loaded.
The pitch is 2.00mm (0.079 inches) with a row spacing of 2.00mm.
The current rating is 2A per contact and the voltage rating is 250V AC.
The connector is through hole mounted with a right angle orientation.
The datasheet indicates RoHS3 compliance and it is REACH unaffected.
The operating temperature range is -40°C to +85°C.
