| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
240,000 pcs
|
240000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
37,776 pcs
|
37776 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5,405 pcs
|
5405 pcs | On Request | 1 | On Request | On Request | 2137+ | On Request | On Request | |
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
380 pcs
|
380 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Resistance | |
| Contact Termination | |
| Contact Type | |
| Operating Temperature Range | |
| Pin or Socket | |
| Voltage Rating | |
| Wire Gauge |

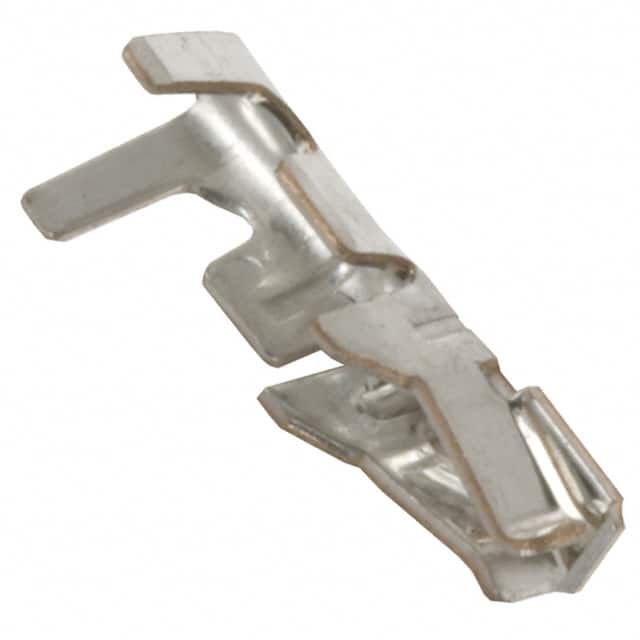

The DF11-2428SCF is a socket contact manufactured by Hirose Electric, designed for use with DF11 series wire-to-board connectors.
This contact accepts 24-28 AWG wire and uses a crimp termination method. It has a tin finish and is rated for 250 V AC/DC. The current rating depends on wire size: 2.5 A for 24 AWG, 2.0 A for 26 AWG, and 1.0 A for 28 AWG. Maximum contact resistance is 30 mΩ.
The operating temperature range is -40 to +85 °C. The contact is designed for 30 mating cycles. It is supplied in tape and reel packaging, 100 pieces per reel.
250 V AC/DC.
2.5 A for AWG24, 2.0 A for AWG26, and 1.0 A for AWG28.
24-28 AWG.
