| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accomodates a Fuse | |
| Approval Agency | |
| Approvals | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Filter Type | |
| Fuse Accommodation | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature Range | |
| Panel Cutout Dimensions | |
| Panel Thickness (Nominal @ Snap-in mounting) | |
| Protection Class | |
| Short Circuit Capacity (Minimum @ In < 3 A @ 240 VAC) | |
| Short Circuit Capacity (Nominal @ In < 3 A @ 240 VAC) | |
| Switch Features | |
| Termination | |
| Termination Style | |
| Voltage Rating | |
| current_rating (Nominal @ IEC) | |
| current_rating (Nominal @ UL/CSA) | |
| dielectric_strength (Minimum @ Between L-N, 1 min/50 Hz) | |
| dielectric_strength (Minimum @ Between L/N-PE, 1 min/50 Hz) | |
| panel_thickness (Maximum @ Screw mounting) |

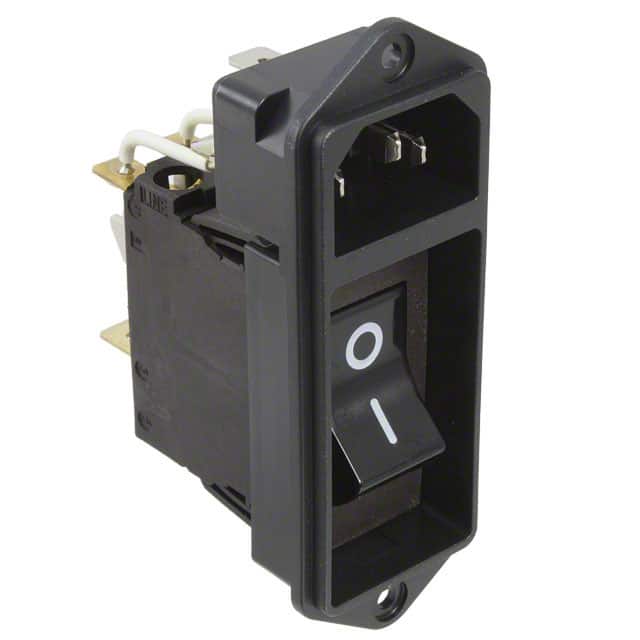

The Schurter DF11.2078.0010.01 is a power entry module from the DF11 series, combining an IEC 320-C14 appliance inlet with a 2-pole circuit breaker and a rocker switch in a single assembly. It is designed for panel mount installation with screw or snap-in fixing options. The module accepts quick connect terminals (6.3x0.8mm) and provides a 3-position (line, neutral, ground) connection.
Electrical ratings are 10A at 250VAC per IEC and 15A at 250VAC per UL/CSA, with dielectric strength exceeding 2.5kVAC between L-N and 3kVAC between L/N-PE. The operating temperature range is -10°C to 55°C, and the front side offers IP40 protection. The housing is made of black thermoplastic rated UL94 V-0, and the pin temperature is rated for 70°C.
This module is suitable for appliances with protection class I or II according to IEC 61140 and carries cULus and ENEC approvals. The panel cutout is rectangular 29.00mm x 73.50mm, with panel thickness up to 8mm for screw mounting or 1-3mm for snap-in mounting. The module is unfiltered, making it ideal for applications where external filtering is required or noise is not a concern.
The connector style is IEC 320-C14.
It has 3 positions (line, neutral, ground).
It is rated for 10A per IEC and 15A per UL/CSA at 250VAC.
The voltage rating is 250VAC.
It is panel mounted with flange, and supports screw or snap-in fixing.
It has cULus and ENEC approvals.
The front side has IP40 protection according to IEC 60529.
